Titanium is a remarkable metal known for its strength, lightweight properties, and resistance to corrosion. These characteristics make it an ideal choice for various applications, particularly in industries such as aerospace, medical, and chemical processing. The manufacturing process of titanium tubes is intricate and involves several stages, starting from the extraction of titanium ore to the final production of finished tubes. This article will explore the entire manufacturing process of titanium tubes, detailing each step and its significance.
Titanium's unique properties stem from its atomic structure, which allows it to maintain strength at high temperatures while remaining lightweight. This characteristic is particularly advantageous in aerospace applications, where materials must withstand extreme conditions. In the medical field, titanium's biocompatibility ensures that it can be safely used in the human body, making it ideal for implants and surgical instruments. As we delve deeper into the manufacturing process, we will uncover the intricate dynamics that shape the production of titanium tubes.
The first step in the titanium tube manufacturing process is the extraction of titanium ore, primarily from minerals such as ilmenite and rutile. These ores are mined and then processed to separate titanium dioxide from impurities. The titanium dioxide is then subjected to the Kroll process, which involves reducing it to titanium sponge using chlorine and magnesium. This titanium sponge is a porous form of titanium that serves as the raw material for further processing.
The Kroll process is crucial as it transforms titanium dioxide into a usable form. The titanium sponge is then crushed and melted to create titanium ingots. This melting process is typically performed in a vacuum or inert atmosphere to prevent contamination, ensuring the purity of the titanium. The extraction and processing of titanium ore are labor-intensive and require significant energy, which can impact the overall sustainability of titanium production. However, advancements in mining and processing technologies are continuously improving efficiency and reducing environmental impacts.

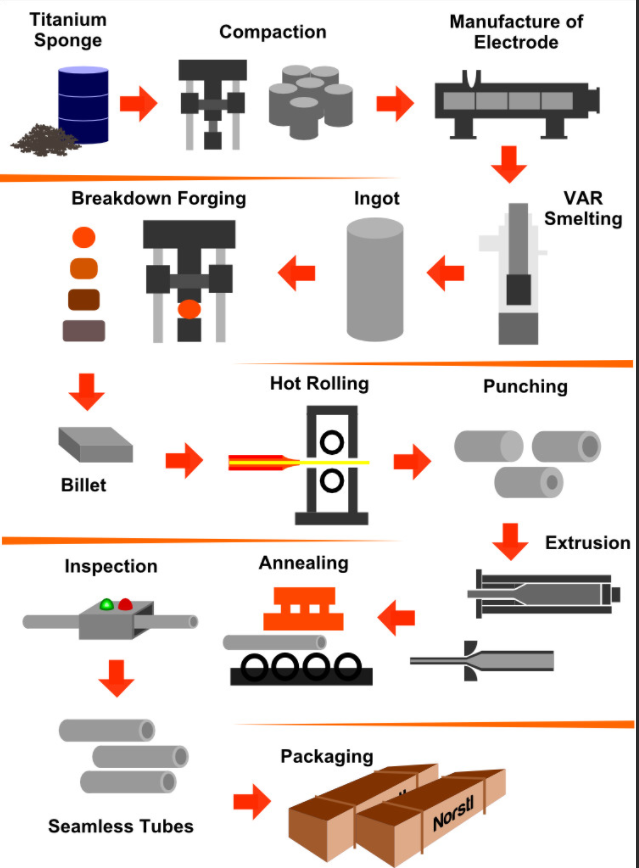

Once the titanium sponge is produced, it undergoes a melting process to form ingots. This is usually done using methods such as vacuum arc remelting (VAR) or electron beam melting (EBM). These techniques allow for precise control over the melting environment, which is essential for producing high-quality titanium ingots.
During the melting process, the titanium sponge is placed in a crucible and heated to a temperature that allows it to liquefy. The molten titanium is then poured into molds to form ingots. These ingots are subsequently cooled and solidified, resulting in a dense and homogeneous titanium product. The quality of the ingots is critical, as any impurities or inconsistencies can affect the performance of the final titanium tubes. Therefore, rigorous quality control measures are implemented during this stage to ensure that the ingots meet industry standards.
The melting and refining process is not only about achieving purity but also about ensuring that the titanium has the desired mechanical properties. The cooling rate, for instance, can influence the microstructure of the titanium, affecting its strength and ductility. Manufacturers often conduct tests on the ingots to assess their mechanical properties before proceeding to the next stage of production.
After the ingots are produced, they are heated to a suitable forging temperature, typically between 800°C and 1000°C, depending on the specific titanium alloy being used. Forging is a process that involves shaping the heated ingots into more manageable forms, such as billets or slabs, through mechanical deformation.
This process not only shapes the titanium but also refines its internal structure, improving its mechanical properties. The forging process can be performed using various methods, including hammer forging and press forging. The choice of method depends on the desired shape and properties of the final product. Forging is essential for enhancing the density of the material and eliminating any internal voids that may have formed during the melting process.
Once the ingots are forged into billets, they are ready for the next stage of processing, which involves rolling and forming them into tubes. The forging process is critical in determining the final characteristics of the titanium tubes, as it sets the foundation for their strength and durability.
The next step in the titanium tube manufacturing process is rolling and forming the billets into hollow tubes. This can be achieved through several methods, including hot rolling, cold rolling, and extrusion.
In hot rolling, the billets are heated to a temperature that allows them to be easily shaped. The heated billets are then passed through rollers that gradually reduce their diameter and increase their length, forming a hollow tube. This method is particularly effective for producing larger diameter tubes and is often used for applications requiring high strength. The hot rolling process also helps to refine the grain structure of the titanium, enhancing its mechanical properties.
Cold rolling, on the other hand, is performed at room temperature and is used to achieve tighter tolerances and improved surface finishes. In this process, the billets are passed through a series of rollers that gradually reduce their thickness while elongating them into tubes. Cold rolling enhances the mechanical properties of the titanium, making it stronger and more durable. This method is particularly useful for applications where precision and surface quality are critical.
Extrusion is another method used to create titanium tubes. In this process, a solid titanium billet is heated and then forced through a die to create a hollow tube. The diameter and wall thickness of the tube can be controlled by adjusting the size of the die and the extrusion pressure. This method is particularly useful for producing tubes with complex shapes or specific dimensions. Extrusion allows for the efficient production of long lengths of titanium tubing, which can be cut to size for various applications.
The choice of rolling or extrusion method depends on the specific requirements of the final product, including dimensions, mechanical properties, and surface finish. Each method has its advantages and is selected based on the intended application of the titanium tubes.
After the tubes are formed, they undergo heat treatment to enhance their mechanical properties. Heat treatment involves heating the tubes to a specific temperature and then cooling them at a controlled rate. This process helps to relieve internal stresses, improve ductility, and refine the grain structure of the titanium.
The heat treatment process can vary depending on the specific alloy and the desired properties of the final product. Common heat treatment methods include annealing, solution treating, and aging. Each method serves a specific purpose in optimizing the performance of the titanium tubes. For instance, annealing is often used to soften the material, making it easier to work with in subsequent manufacturing processes.
Heat treatment is a critical step in ensuring that the titanium tubes meet the stringent requirements of their intended applications. The mechanical properties of titanium, such as strength and toughness, can be significantly improved through proper heat treatment, making it essential for high-performance applications.
Once the titanium tubes have been heat-treated, they may require additional machining to achieve the desired dimensions and surface finish. Machining processes such as cutting, grinding, and polishing are employed to refine the tubes and ensure they meet the required specifications.
Surface treatment is also an essential step in the manufacturing process. This may involve processes such as pickling, passivation, or coating to enhance the corrosion resistance and overall durability of the titanium tubes. These treatments help to protect the tubes from environmental factors and extend their lifespan. For example, passivation creates a protective oxide layer on the surface of the titanium, improving its resistance to corrosion.
The finishing processes are crucial for ensuring that the titanium tubes not only meet dimensional specifications but also perform reliably in their intended applications. Manufacturers often conduct final inspections and tests to verify that the tubes meet quality standards before they are shipped to customers.
Throughout the manufacturing process, rigorous quality control measures are implemented to ensure that the titanium tubes meet industry standards and customer specifications. This includes inspections at various stages of production, from raw material selection to final product testing.
Quality control tests may include dimensional inspections, mechanical property testing, and non-destructive testing methods such as ultrasonic or radiographic inspections. These tests help to identify any defects or inconsistencies in the tubes, ensuring that only high-quality products are delivered to customers. The importance of quality control cannot be overstated, as any defects in the titanium tubes can lead to failures in critical applications, particularly in aerospace and medical fields.
Manufacturers often adhere to international standards and certifications to ensure that their products meet the highest quality benchmarks. Continuous improvement initiatives are also implemented to enhance the manufacturing process and address any quality issues that may arise.
Titanium tubes are used in a wide range of applications across various industries. Their unique properties make them particularly suitable for demanding environments. Some common applications include:
- Aerospace: Titanium tubes are used in aircraft structures, engine components, and fuel systems due to their lightweight and high strength. The aerospace industry relies on titanium for its ability to withstand extreme temperatures and corrosive environments, making it essential for both commercial and military aircraft.
- Medical: In the medical field, titanium tubes are used for implants, surgical instruments, and dental applications, thanks to their biocompatibility and corrosion resistance. Titanium's ability to integrate with bone tissue makes it an ideal material for orthopedic implants, while its strength and lightweight nature are advantageous for surgical tools.
- Chemical Processing: Titanium tubes are ideal for handling corrosive substances in chemical processing plants, as they can withstand harsh environments without degrading. The chemical industry values titanium for its resistance to a wide range of chemicals, making it suitable for piping, heat exchangers, and reactors.
- Marine: In marine applications, titanium tubes are used for their resistance to seawater corrosion, making them suitable for shipbuilding and offshore structures. The durability of titanium in marine environments ensures the longevity of components exposed to harsh conditions.
The titanium tube manufacturing industry is continuously evolving, driven by advancements in technology and increasing demand for high-performance materials. Some future trends to watch include:
- Additive Manufacturing: The rise of 3D printing technology is opening new possibilities for producing complex titanium tube geometries that were previously difficult to achieve with traditional methods. Additive manufacturing allows for the creation of customized titanium tubes tailored to specific applications, reducing waste and improving efficiency.
- Sustainability Initiatives: As industries focus on reducing their environmental impact, there is a growing emphasis on sustainable practices in titanium production, including recycling and waste reduction. Manufacturers are exploring ways to recycle titanium scrap and reduce energy consumption during the production process.
- Innovative Alloys: Ongoing research and development efforts are leading to the creation of new titanium alloys with enhanced properties, expanding the range of applications for titanium tubes. These innovative alloys may offer improved strength, corrosion resistance, and fatigue performance, making them suitable for even more demanding environments.
- Automation and Smart Manufacturing: The integration of automation and smart manufacturing technologies is transforming the titanium tube production process. Advanced robotics, artificial intelligence, and data analytics are being utilized to optimize production efficiency, reduce costs, and improve quality control.
The manufacturing process of titanium tubes is a complex and multi-faceted journey that begins with the extraction of titanium ore and culminates in the production of high-quality finished products. Each stage of the process, from melting and forging to rolling and finishing, plays a crucial role in determining the properties and performance of the final tubes. As industries continue to seek lightweight, durable, and corrosion-resistant materials, titanium tubes will remain a vital component in various applications.
The future of titanium tube manufacturing looks promising, with advancements in technology and a focus on sustainability driving innovation in the industry. By addressing the challenges and embracing new opportunities, manufacturers can continue to meet the growing demand for titanium tubes in an ever-evolving market.
1. What is the Kroll process in titanium production?
The Kroll process is a method used to extract titanium from its ore, involving the reduction of titanium dioxide to titanium sponge using chlorine and magnesium.
2. What are the main applications of titanium tubes?
Titanium tubes are commonly used in aerospace, medical, chemical processing, and marine applications due to their strength, lightweight, and corrosion resistance.
3. How does heat treatment affect titanium tubes?
Heat treatment enhances the mechanical properties of titanium tubes by relieving internal stresses, improving ductility, and refining the grain structure.
4. What are the benefits of using titanium over other materials?
Titanium offers superior strength-to-weight ratios, excellent corrosion resistance, and biocompatibility, making it ideal for demanding applications.
5. What future trends are expected in titanium tube manufacturing?
Future trends include the adoption of additive manufacturing, sustainability initiatives, and the development of innovative titanium alloys.
