In the realm of advanced industrial piping, the selection of materials is rarely a simple cost-benefit analysis. For engineers operating within chemical processing, desalination, marine, and aerospace industries, the choice of piping material dictates the lifespan, safety, and operational efficiency of the entire facility. Titanium pipe fittings, favored for their unparalleled corrosion resistance, high strength-to-weight ratio, and thermal stability, have become the gold standard for high-stakes environments. At Shaanxi Lasting Advanced Titanium, we understand that these components are the critical nodes in systems transporting aggressive media. This guide provides a deep dive into the types, engineering specifications, and practical applications of titanium pipe fittings.
Titanium owes its status to the formation of a tenacious, self-healing oxide layer (TiO2) that forms instantaneously upon exposure to oxygen. In piping systems, this characteristic makes titanium immune to a vast array of corrosive environments that rapidly degrade stainless steel, copper-nickel, or carbon steel. Beyond corrosion, the low thermal expansion coefficient of titanium reduces the mechanical stress placed on piping supports during temperature cycling, while its low density ensures that structural loads are minimized—a critical factor for offshore platforms and modular skid designs.
Furthermore, the fatigue resistance of titanium in cyclic loading environments—such as those found in fluctuating process streams or vibrating machinery—far exceeds that of traditional austenitic stainless steels. When designing long-term infrastructure, engineers must consider the "total cost of ownership" (TCO). While titanium carries a higher initial procurement cost, its ability to survive decades in environments where stainless steel would pit or fail in months makes it the most economically viable choice over the lifecycle of the plant. The combination of its non-magnetic properties and its stability in both oxidizing and reducing media makes it a uniquely versatile asset in modern process piping design.
The versatility of titanium is fully realized through its diverse range of fittings, designed to facilitate flow control, direction change, and diameter transitions under pressure. Each fitting type is engineered to maintain the structural integrity of the system while accommodating the specific fluid dynamics of the process.
Elbows are the most frequently utilized fittings, essential for changing the direction of fluid flow. In titanium, these are typically produced via hot forming or mandrel bending of seamless pipe. For critical flow paths, we prioritize long-radius elbows to minimize turbulence and pressure drop, which are primary drivers of erosion-corrosion in high-velocity systems. The bending process must be carefully controlled to ensure wall thinning at the extrados of the elbow remains within specified design limits, ensuring the pressure rating is consistent with the straight pipe sections.

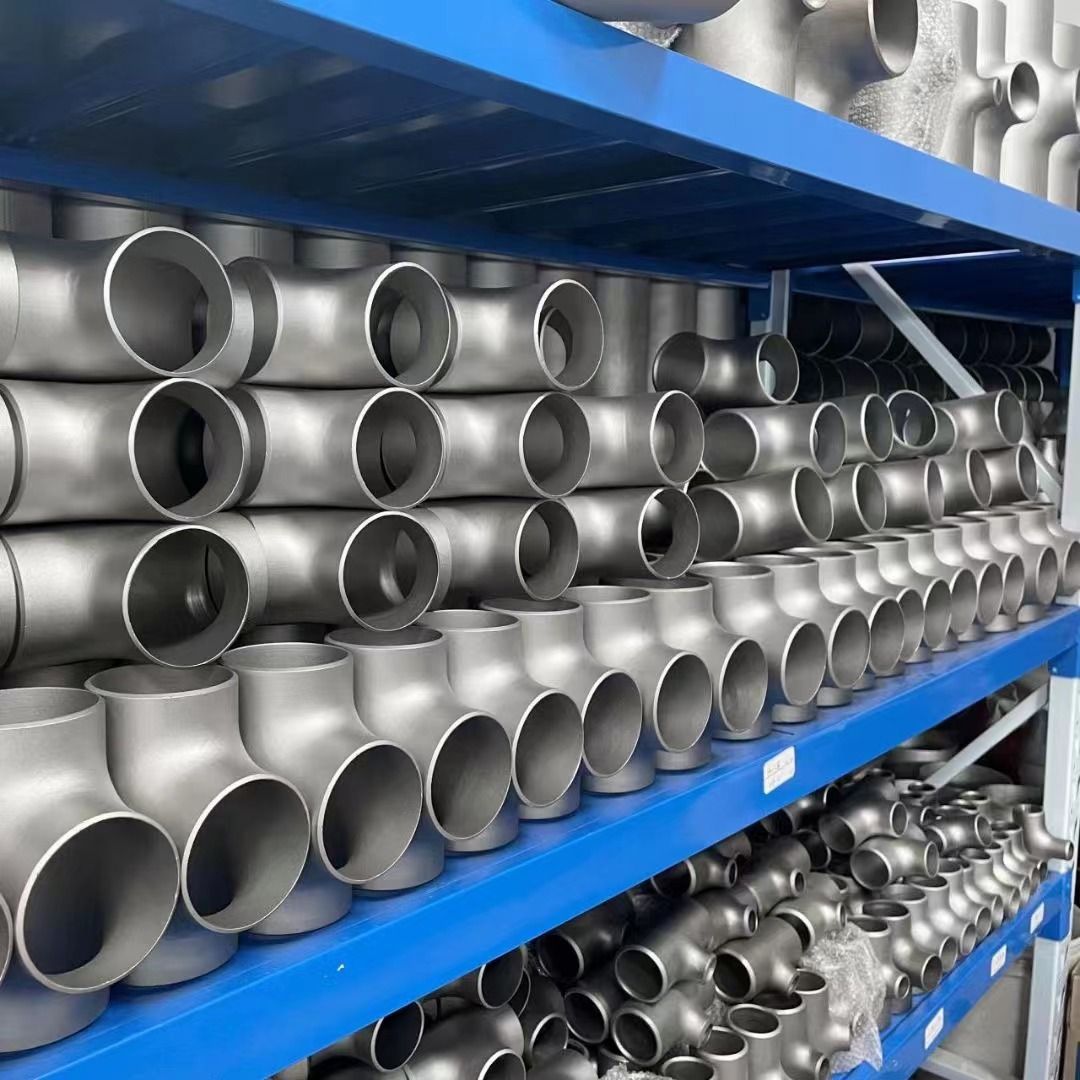

Tees facilitate branch connections. Straight tees connect pipes of equal diameter, while reducing tees allow for the integration of smaller lateral lines. The engineering challenge with titanium tees lies in maintaining wall thickness and structural integrity at the junction point, especially during high-pressure cycles. Our manufacturing process involves precision hydro-forming or extrusion techniques to ensure uniform wall thickness, effectively mitigating the risk of localized stress concentration. Additionally, for specific high-pressure applications where dimensional exactness is non-negotiable, straight tees can be fabricated through precision machining from high-quality, thick-walled forged bar stock. These tees are meticulously inspected for internal fissures that could act as nucleation sites for corrosion.
Reducers are utilized to transition between different pipe diameters. Concentric reducers align the centerlines of the two pipes, whereas eccentric reducers offset the centerlines, which is vital in preventing air or vapor traps in horizontal liquid piping lines. For process lines handling slurries or multiphase fluids, eccentric reducers are favored to ensure complete drainage and prevent stagnant pockets where chemical deposits or particulate matter might otherwise accumulate, which could lead to localized under-deposit corrosion.
Stub ends are used in conjunction with lap joint flanges to facilitate easier assembly and disassembly in systems that require frequent inspection or maintenance. They are particularly valuable when the piping system requires rotational alignment of bolt holes during the installation phase, reducing the mechanical stress during fit-up. By using titanium stub ends, the wetted part of the connection remains titanium, while the flange can be made of lower-cost carbon steel, provided that proper isolation techniques are employed.
Not all titanium is equal. The selection of the grade for pipe fittings is predicated on the operational environment, and selecting the correct chemistry is vital to preventing premature failures.
Commercially pure (CP) Grade 2 titanium is the most common choice for pipe fittings. It offers an excellent combination of corrosion resistance and moderate strength. It is highly ductile, making it the preferred choice for forming and welding operations in general chemical processing equipment, heat exchangers, and storage tanks. Its ability to tolerate significant cold work during the manufacturing of fittings, combined with its high purity, makes it the ideal candidate for applications requiring extensive field welding and installation flexibility.
When piping systems face extreme internal pressure or require higher mechanical strength, Grade 5 is utilized. While it is more difficult to form than Grade 2, its superior tensile strength makes it indispensable for high-pressure hydraulic lines in aerospace and deep-sea exploration equipment. Grade 5 provides the structural robustness needed to maintain wall thickness without excessive weight, a critical factor in weight-sensitive aerospace piping architectures where safety margins are strictly regulated.
These grades are similar to Grade 2 but feature palladium (or ruthenium) additions. They provide significantly enhanced resistance to crevice corrosion and pitting in hot chloride solutions and reducing acidic environments, making them the standard in severe desalination and brine processing plants. The palladium addition shifts the corrosion potential of the titanium into the passive range, providing a robust defense in highly aggressive environments where standard CP titanium might face crevice attack under gaskets or bolt heads.
The production of high-quality titanium pipe fittings is a sophisticated discipline that goes beyond basic casting or forming. It requires a deep understanding of metallurgy to ensure the end product meets the required performance standards.
We strongly advocate for seamless construction in titanium pipe fittings. Seams (welds) represent inherent weak points in the pipe wall, susceptible to stress-induced corrosion cracking. By starting with high-quality, seamless extruded or pilgered titanium pipe, we ensure that the resulting fitting has a homogeneous microstructure, which is essential for consistent performance under pressure. This homogeneity eliminates the risk of differential corrosion rates between the weld and base metal, a common failure mode in lower-quality welded piping components.
Titanium is highly reactive at high temperatures. During hot forming, oxygen and nitrogen from the air can diffuse into the surface, creating a brittle layer known as the "alpha case." We utilize specialized vacuum or inert-gas controlled heating environments, followed by chemical pickling, to ensure that every fitting delivered is free of this brittle layer. Furthermore, we maintain surface finishes with Ra values consistently within the range of 0.2 μm to 0.4 μm to discourage the adhesion of corrosive particulate matter. This level of refinement is vital in high-purity chemical or pharmaceutical processes where surface smoothness is a primary defense against potential pit initiation.
The integrity of a titanium system is only as good as the installation. Titanium, unlike stainless steel, requires a rigorously inert atmosphere during field welding.
* Shielding: All welds must be performed using trailing shields and back-purging with high-purity argon. Even minimal exposure to atmospheric oxygen at welding temperatures will lead to catastrophic oxidation, resulting in a brittle, discolored weld that is prone to cracking under thermal expansion. We hold this as an absolute requirement for all critical pressure-retaining welds.
* Contamination Avoidance: Titanium fittings should never come into direct contact with iron-based tools. We recommend using dedicated stainless steel or non-metallic tools for installation to prevent the embedding of iron particles, which can trigger localized galvanic corrosion. The presence of even microscopic amounts of iron on the surface can destroy the titanium's passivity and facilitate the start of pitting.
* Galvanic Isolation: When connecting titanium to dissimilar metals, insulating kits (gaskets, sleeves, and washers) are mandatory to prevent galvanic corrosion, where the titanium acts as the cathode and the less noble metal as the anode. This is especially true in aqueous environments where conductivity is high.
While the initial material investment for titanium pipe fittings is significantly higher than that of stainless steel or plastic-lined steel, the total cost of ownership is dramatically lower. In systems where downtime is measured in thousands of dollars per hour, the reliability of titanium—which can function for decades without replacement—provides a compelling economic justification. By eliminating the costs associated with frequent maintenance, inspection, and emergency repairs, titanium pipe fittings provide the highest return on investment in the most aggressive industrial landscapes. Engineers often find that the "expensive" titanium option pays for itself within the first few years of service, solely through the avoidance of scheduled maintenance shutdowns.
Q: Why is seamless pipe preferred over welded pipe for high-pressure titanium fittings?
A: Seamless pipe provides a uniform metallurgical structure across the entire circumference. Welded pipe introduces a heat-affected zone (HAZ) that may possess different mechanical and corrosion-resistant properties than the base material. In high-pressure applications, the uniform microstructure of a seamless fitting is critical to prevent stress concentrations and ensure long-term structural fatigue resistance.
Q: Can titanium fittings be used with stainless steel piping?
A: Yes, but with strict precautions. Direct contact between titanium and other metals can trigger severe galvanic corrosion in the presence of an electrolyte. Flanged connections between the two materials must incorporate dielectric insulating kits, including isolation gaskets and bolt sleeves, to prevent electrical continuity and stop the flow of electrons that drives the corrosion cell.
Q: What is the most critical factor to check during the welding of titanium fittings?
A: The most critical factor is the color of the weld. A properly executed titanium weld will be bright silver or straw-colored. Any blue, purple, or white (powdery) discoloration indicates atmospheric contamination, signaling that the weld is brittle and prone to premature failure; such welds must be rejected immediately to ensure system safety.
Q: How do you prevent iron contamination during the installation of titanium pipes?
A: Iron contamination is prevented by using "dedicated-use" tools. Never use wire brushes or grinding wheels that have previously been used on carbon or stainless steel. Furthermore, maintain a clean, oil-free environment for all pipe preparation and ensure that handling personnel wear clean, non-metallic gloves, as oils and salts from hands can also be detrimental at welding temperatures.
Q: Are there specific standards that titanium pipe fittings must meet?
A: Yes, most industrial titanium fittings are manufactured in accordance with ASTM/ASME standards, such as ASTM B363, which covers seamless and welded unalloyed titanium and titanium alloy welding fittings. These standards define the chemical composition, mechanical properties, and dimensional tolerances required for safe industrial service, ensuring that every fitting meets the performance parameters mandated by global engineering codes.
