Titanium welded tubes are essential components in various industries, including aerospace, automotive, and chemical processing, due to their excellent strength-to-weight ratio and corrosion resistance. This article will provide a comprehensive overview of the manufacturing process of titanium welded tubes, detailing each step involved from raw material selection to final inspection.
Titanium is a lightweight, high-strength metal known for its exceptional corrosion resistance and biocompatibility. It is widely used in various applications, particularly in environments where strength and weight are critical factors. The unique properties of titanium make it an ideal choice for welded tubes, which are used in demanding applications such as aerospace and chemical processing. Titanium's low density, high tensile strength, and ability to withstand extreme temperatures and corrosive environments make it a preferred material in industries that require reliable and durable components. Additionally, titanium's biocompatibility allows it to be used in medical implants and devices, further expanding its application range.
The manufacturing of titanium welded tubes begins with the selection of high-quality titanium strip or plate as the raw material. These materials typically originate from titanium ingots, which are produced through a series of processes including the extraction of titanium ore, the production of titanium sponge, and subsequent melting in a vacuum arc furnace or cold hearth furnace. The titanium ingots are then forged or rolled into plates or bars, which serve as the foundation for tube production.
The choice of raw material is critical, as the grade of titanium (such as commercially pure grades Gr1 and Gr2, or titanium alloys like Ti-6Al-4V) and its chemical composition directly influence the mechanical properties and corrosion resistance of the final product. The manufacturing process begins with the careful screening of titanium ore to remove any contaminants, followed by a series of chemical treatments to produce high-purity titanium. This powder is then compacted and sintered to form solid titanium billets, which are the foundation for the subsequent tube manufacturing processes.

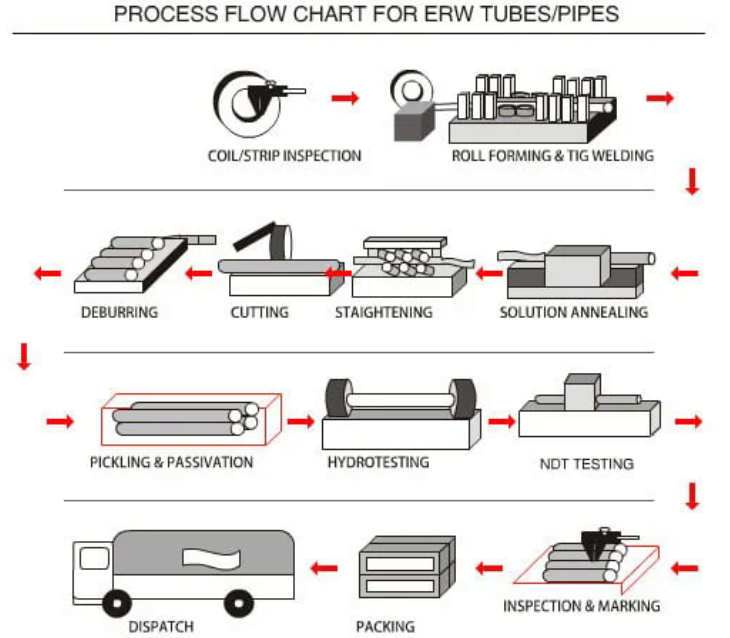

The manufacturing process of titanium welded tubes involves several key steps, each critical to ensuring the quality and performance of the final product.
1. Cutting: Titanium sheets or strips are cut into appropriate sizes using precision cutting tools. This step is crucial for ensuring that the raw material is ready for the next phase of the manufacturing process. The cutting process must be executed with high precision to minimize waste and ensure that the dimensions of the cut pieces meet the specifications required for tube formation. Advanced cutting techniques, such as laser cutting or water jet cutting, are often employed to achieve the desired accuracy and surface finish. Additionally, band saws are commonly used for cutting thick titanium plates or billets, and care must be taken to prevent overheating during the cutting process to avoid altering the material's properties.
2. Forming: The cut titanium sheets are then rolled into cylindrical shapes. This is typically done using a rolling machine that shapes the material into a tube form with tightly joined edges. The forming process involves applying controlled pressure to the titanium sheets, which allows them to be shaped without compromising their structural integrity. The rolling process can be performed in multiple passes to gradually achieve the desired diameter and wall thickness. Due to titanium's tendency to spring back and its strong cold work hardening characteristics, multiple progressive forming steps or intermediate annealing may be necessary to achieve the desired shape without introducing defects.
The next step involves welding the edges of the formed tubes. Several welding techniques can be employed, including:
- TIG (Tungsten Inert Gas) Welding: This method uses a non-consumable tungsten electrode to produce the weld. It is performed in a controlled environment to prevent contamination. TIG welding is known for its ability to produce high-quality welds with excellent penetration and minimal distortion. The process requires skilled operators to ensure that the welds meet the stringent quality standards required for titanium applications.
- Plasma Arc Welding: This technique is similar to TIG welding but uses a plasma arc to achieve higher temperatures and faster welding speeds. Plasma arc welding is particularly effective for thicker materials and can provide superior control over the weld pool.
The choice of welding technique depends on the specific requirements of the application, including the thickness of the material and the desired properties of the weld. Each welding method has its advantages and limitations, and the selection process must consider factors such as production volume, cost, and the mechanical properties required for the final product. It is important to note that MIG (Metal Inert Gas) welding is rarely used for titanium due to the metal's high reactivity, which can lead to contamination and embrittlement of the weld.
After welding, the tubes undergo a heat treatment process. This step is essential for addressing residual stresses introduced during welding. For commercially pure titanium welded tubes, the primary purpose of post-weld heat treatment is to relieve these stresses, stabilize dimensions, and improve resistance to stress corrosion cracking. In contrast, titanium alloys may require more complex heat treatment protocols, including solution treatment and aging, to achieve the desired combination of mechanical properties.
Heat treatment parameters, such as temperature and duration, are carefully controlled to achieve the desired microstructure and mechanical properties. The annealing process can also improve the corrosion resistance of the titanium by promoting the formation of a stable oxide layer on the surface.
Once the heat treatment is complete, the tubes undergo several finishing processes to ensure they meet the required specifications:
1. Surface Finishing: This may include polishing, grinding, or sandblasting to achieve a smooth surface finish. Surface finishing is essential for enhancing the aesthetic appearance of the tubes and improving their resistance to corrosion. A smooth surface finish also reduces friction and wear, which is particularly important in applications where the tubes will be subjected to fluid flow or mechanical movement.
2. Acid Pickling: A critical step in the surface treatment of titanium welded tubes is acid pickling, which is performed to remove the oxide layer formed during welding and heat treatment. This oxide layer, which can appear blue or yellow, must be eliminated to restore the natural silver-white dense oxide film that is crucial for the corrosion resistance of titanium. Without this step, the tubes may be susceptible to corrosion and other forms of degradation.
3. Inspection: The tubes are inspected for any defects or irregularities. This may involve non-destructive testing methods to ensure the integrity of the welds. Common inspection techniques include ultrasonic testing, radiographic testing, and dye penetrant testing. These methods allow manufacturers to detect internal and surface defects without damaging the tubes, ensuring that only high-quality products are delivered to customers.
Quality control is a critical aspect of the manufacturing process for titanium welded tubes. Various tests and inspections are conducted to ensure that the tubes meet industry standards and specifications. Common quality control measures include:
- Dimensional Inspection: Ensuring that the tubes meet the specified dimensions and tolerances. This step is crucial for ensuring that the tubes fit properly in their intended applications and function as designed.
- Mechanical Testing: Evaluating the strength and ductility of the welded joints. Mechanical tests, such as tensile testing and impact testing, provide valuable information about the performance of the tubes under load.
- Non-Destructive Testing (NDT): Techniques such as ultrasonic testing or X-ray inspection are used to detect any internal defects in the welds. NDT is essential for ensuring the reliability and safety of the tubes, particularly in critical applications where failure could have severe consequences.
The quality control process is an ongoing effort that continues throughout the manufacturing cycle. Manufacturers often implement statistical process control (SPC) techniques to monitor production processes and identify any deviations from established quality standards.
Titanium welded tubes are used in a wide range of applications due to their unique properties. Some common applications include:
- Aerospace: Used in aircraft structures and engine components due to their lightweight and high strength. The aerospace industry demands materials that can withstand extreme conditions, and titanium's ability to perform reliably in high-stress environments makes it a preferred choice for critical components.
- Chemical Processing: Employed in pipelines and reactors where corrosion resistance is critical. Titanium's resistance to a wide range of corrosive substances makes it ideal for use in chemical processing equipment, where traditional materials may fail.
- Medical Devices: Utilized in implants and surgical instruments due to their biocompatibility. Titanium's compatibility with human tissue and its ability to resist corrosion in bodily fluids make it an excellent choice for medical applications.
- Marine Applications: Used in seawater applications due to its resistance to saltwater corrosion. Titanium's durability in harsh marine environments makes it suitable for components such as heat exchangers and underwater structures.
The manufacturing process of titanium welded tubes is a complex and precise operation that requires careful attention to detail at every stage. From raw material selection to final inspection, each step plays a vital role in ensuring the quality and performance of the final product. As industries continue to demand high-performance materials, the importance of titanium welded tubes will only grow. The ongoing advancements in manufacturing techniques and quality control measures will further enhance the capabilities of titanium welded tubes, making them an even more valuable asset in various applications.
1. What are the advantages of titanium welded tubes?
- Titanium welded tubes offer excellent strength-to-weight ratios, corrosion resistance, and biocompatibility, making them ideal for various applications.
2. What welding techniques are commonly used for titanium tubes?
- The most common welding techniques for titanium tubes are TIG and plasma arc welding, each suited for different thicknesses and applications.
3. How is the quality of titanium welded tubes ensured?
- Quality is ensured through rigorous inspection processes, including dimensional checks, mechanical testing, and non-destructive testing methods.
4. What industries use titanium welded tubes?
- Titanium welded tubes are widely used in aerospace, chemical processing, and medical industries.
5. Can titanium welded tubes be customized?
- Yes, titanium welded tubes can be customized in terms of size, thickness, and alloy composition to meet specific application requirements.
