Titanium pipe fittings are essential components in various industries, known for their strength, lightweight nature, and excellent corrosion resistance. However, not all titanium fittings are created equal. Identifying high-quality titanium pipe fittings from manufacturers requires a thorough understanding of the material, manufacturing processes, and quality assurance measures. This article will guide you through the essential aspects of identifying high-quality titanium pipe fittings, including visual inspections, testing methods, and supplier evaluations.

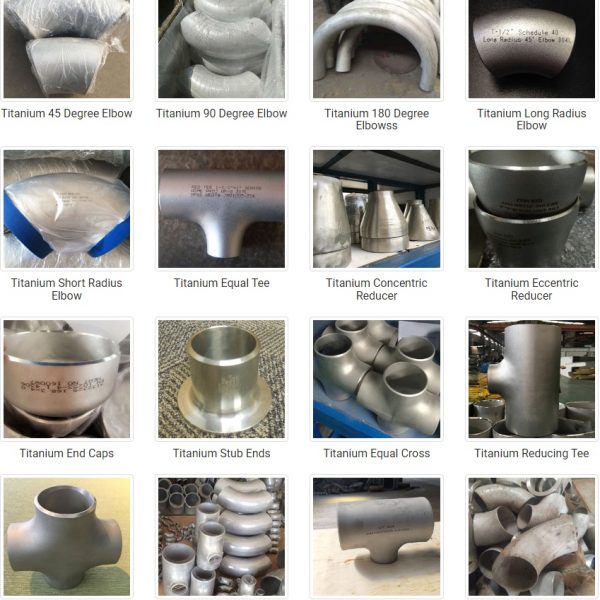

Titanium pipe fittings are specialized components made from titanium alloys, designed to connect, redirect, or seal off pipe systems. These fittings include elbows, tees, reducers, couplings, and stub ends, among others. Titanium is favored in many applications due to its unique properties, such as high strength-to-weight ratio, excellent corrosion resistance, and ability to withstand extreme temperatures and pressures. The versatility of titanium fittings makes them suitable for a wide range of applications, from aerospace to chemical processing, where reliability and performance are critical.
The manufacturing of titanium pipe fittings involves several processes, including forging, machining, and welding. Each of these processes can affect the final product quality and performance. Understanding these processes can help buyers make informed decisions when sourcing titanium fittings.
1. Corrosion Resistance: Titanium exhibits exceptional resistance to corrosion, making it ideal for use in harsh environments, such as chemical processing and marine applications. Unlike other metals, titanium does not rust or corrode easily, which extends the lifespan of the fittings and reduces maintenance costs. This property is particularly beneficial in industries where exposure to corrosive substances is common, such as oil and gas, where fittings are often subjected to saltwater and other aggressive chemicals.
2. Lightweight: Titanium is significantly lighter than steel, which helps reduce the overall weight of piping systems without compromising strength. This lightweight nature is advantageous in applications where weight savings are critical, such as in aerospace and automotive industries. The reduced weight can lead to lower transportation costs and easier handling during installation.
3. High Strength: Titanium fittings can withstand high pressures and temperatures, making them suitable for demanding applications. The strength of titanium allows for thinner wall designs, which can save material and reduce weight while maintaining structural integrity. This characteristic is particularly important in high-pressure systems, where the risk of failure can have serious consequences.
4. Durability: The longevity of titanium fittings reduces the need for frequent replacements, leading to lower maintenance costs. In industries where downtime can be costly, the durability of titanium fittings ensures that systems remain operational for longer periods. This reliability is a key factor in maintaining productivity and efficiency in industrial operations.
High-quality titanium fittings are typically made from titanium alloys, such as Grade 2 or Grade 5 titanium. The material's composition affects its mechanical properties, corrosion resistance, and overall performance. Ensure that the fittings meet industry standards and specifications. For instance, Grade 2 titanium is known for its excellent corrosion resistance and is commonly used in applications where strength is not the primary concern. In contrast, Grade 5 titanium, an alloy of titanium, aluminum, and vanadium, offers higher strength and is suitable for more demanding applications.
Understanding the specific requirements of your application will help you choose the right grade of titanium. Additionally, it is essential to verify that the manufacturer provides material certifications, which confirm the chemical composition and mechanical properties of the titanium used in the fittings.
The surface finish of titanium fittings should be smooth and free from defects. A high-quality finish not only enhances the aesthetic appeal but also improves corrosion resistance. Look for fittings that have undergone proper surface treatment processes, such as passivation or anodizing. These treatments create a protective oxide layer on the surface of the titanium, further enhancing its resistance to corrosion and wear.
A well-finished surface also facilitates better sealing in connections, reducing the risk of leaks in piping systems. When inspecting the surface finish, check for any signs of roughness, scratches, or other imperfections that could compromise the fitting's performance.
Precision in manufacturing is crucial for ensuring that titanium fittings fit correctly within piping systems. High-quality fittings should adhere to strict dimensional tolerances as specified by industry standards. This accuracy is vital for ensuring proper alignment and sealing in piping systems, which can prevent leaks and other operational issues.
Manufacturers should provide detailed specifications for their fittings, including dimensions, tolerances, and any applicable standards. It is advisable to cross-reference these specifications with industry standards to ensure compliance.
Upon receiving titanium pipe fittings, conduct a visual inspection to assess their quality. Look for the following characteristics:
- Uniform Color: Authentic titanium fittings should have a consistent matte silver-gray finish. Variations in color may indicate contamination or improper processing.
- No Defects: Check for any signs of pitting, cracks, or discoloration, which may indicate poor quality or contamination during manufacturing. Any visible defects can compromise the integrity of the fitting and lead to failure in service.
- Weight Check: Titanium is lighter than steel but heavier than aluminum. A significant deviation from expected weight may suggest inferior materials. Weighing the fittings can provide a quick indication of their authenticity.
A spark test can help differentiate titanium from other metals. When ground, titanium produces bright white sparks, unlike the red-orange sparks of steel. This test can be a quick field method to verify material authenticity. However, it is essential to note that while the spark test can indicate the presence of titanium, it should not be the sole method of verification.
For critical applications, it is advisable to use more sophisticated testing methods to confirm the material's identity and properties.
Non-destructive testing is essential for ensuring the integrity of titanium fittings without causing damage. Various NDT methods can be employed, including:
- Ultrasonic Testing (UT): This method uses high-frequency sound waves to detect internal discontinuities and assess material thickness. UT is particularly effective for identifying flaws that may not be visible on the surface, such as cracks or voids within the material.
- Radiographic Testing (RT): X-rays or gamma rays are used to identify subsurface flaws, such as cracks or voids. This method provides a detailed view of the internal structure of the fittings, allowing for a comprehensive assessment of their integrity.
- Dye Penetrant Testing (PT): A dye is applied to the surface, and any defects will be highlighted, allowing for easy identification. This method is effective for detecting surface cracks and other imperfections that could affect performance.
Reputable manufacturers should conduct regular NDT on their products to ensure quality and reliability. Request documentation of NDT results when purchasing titanium fittings. This documentation should include details of the testing methods used, the results obtained, and any corrective actions taken if defects were found.
Regular NDT not only helps ensure the quality of the fittings but also provides peace of mind to buyers, knowing that the products have undergone rigorous testing to confirm their integrity.
Selecting a trustworthy supplier is crucial for obtaining high-quality titanium fittings. Consider the following factors:
1. Reputation: Research the supplier's reputation in the industry. Look for reviews, testimonials, and case studies. A supplier with a strong track record of delivering quality products and excellent customer service is more likely to meet your needs.
2. Certifications: Ensure that the supplier holds relevant certifications, such as ISO 9001, which indicates adherence to quality management standards. Certifications can provide assurance that the supplier follows established processes and maintains high-quality standards.
3. Traceability: A reliable supplier should provide traceability for their products, including material certifications and test reports. This traceability is essential for verifying the quality and authenticity of the fittings.
Effective communication is vital when dealing with suppliers. A good supplier should be responsive to inquiries and provide technical support when needed. Establishing a strong relationship can lead to better service and product quality. When evaluating potential suppliers, consider their willingness to engage in discussions about product specifications, testing methods, and any concerns you may have.
Additionally, a supplier that offers comprehensive support, including installation guidance and maintenance recommendations, can be invaluable in ensuring the long-term success of your piping systems.
Identifying high-quality titanium pipe fittings involves a combination of visual inspections, testing methods, and careful supplier evaluation. By understanding the characteristics of titanium, conducting thorough inspections, and choosing reputable suppliers, you can ensure that you are investing in reliable and durable fittings for your piping systems. The importance of quality in titanium fittings cannot be overstated, as it directly impacts the performance and safety of the systems in which they are used.
1. What are the most common titanium alloys used in pipe fittings?
The most common titanium alloys used in pipe fittings include Grade 2, which is commercially pure titanium, and Grade 5, which is an alloy of titanium, aluminum, and vanadium. Grade 2 is known for its excellent corrosion resistance, while Grade 5 offers higher strength and is suitable for more demanding applications.
2. What specific certifications should I look for when sourcing titanium pipe fittings?
When sourcing titanium pipe fittings, look for certifications such as ISO 9001, which indicates adherence to quality management standards. Additionally, request material certifications that confirm the chemical composition and mechanical properties of the titanium used in the fittings.
3. How does the manufacturing process affect the quality of titanium pipe fittings?
The manufacturing process can significantly impact the quality of titanium pipe fittings. Processes such as forging, machining, and welding must be performed with precision to ensure dimensional accuracy and structural integrity. Poor manufacturing practices can lead to defects that compromise the performance of the fittings.
4. How often should I perform inspections on titanium fittings?
Regular inspections should be conducted, especially in critical applications, to ensure the integrity and performance of the fittings. It is advisable to perform visual inspections periodically and conduct NDT as needed, particularly in high-pressure or corrosive environments.
5. What are the advantages of titanium fittings over other materials?
Titanium fittings offer several advantages over other materials, including superior corrosion resistance, a higher strength-to-weight ratio, and the ability to withstand extreme temperatures and pressures. These properties make titanium fittings ideal for demanding applications in industries such as aerospace, marine, and chemical processing.
