Titanium is a versatile metal known for its strength, low density, and corrosion resistance, making it essential in various industries, including aerospace, medical, and automotive. The journey from rutile, a primary source of titanium dioxide (TiO₂), to titanium sponge, a porous form of titanium, involves several intricate processes. This article will explore these processes in detail, providing insights into the methods used to extract and refine titanium from its ore.
Rutile is a mineral composed primarily of titanium dioxide (TiO₂). It is one of the most significant sources of titanium, alongside ilmenite. Rutile is characterized by its high titanium content, making it a preferred choice for titanium extraction. The mineral typically appears as reddish-brown to black crystals and is often found in metamorphic rocks, as well as in sedimentary deposits. Its high refractive index and strong UV absorption properties make it valuable not only for titanium production but also in the manufacturing of pigments and coatings.
Rutile's unique properties, such as its ability to withstand high temperatures and resist corrosion, contribute to its demand in various applications. The mineral is also used in the production of titanium dioxide, which is a key ingredient in paints, plastics, and paper. As industries continue to seek lightweight and durable materials, the importance of rutile as a source of titanium is expected to grow.
Rutile is known for its high refractive index and strong UV absorption, which makes it valuable in the production of pigments and coatings. Its crystalline structure also contributes to its stability and durability. The mineral's hardness, rated at 6 to 6.5 on the Mohs scale, allows it to withstand significant wear and tear, making it suitable for various industrial applications.
In addition to its physical properties, rutile's chemical stability is crucial for its use in titanium extraction. The mineral does not easily react with other substances, which is advantageous during the chlorination process. This stability ensures that the titanium dioxide remains intact, allowing for efficient conversion into titanium tetrachloride (TiCl₄) during the extraction process.

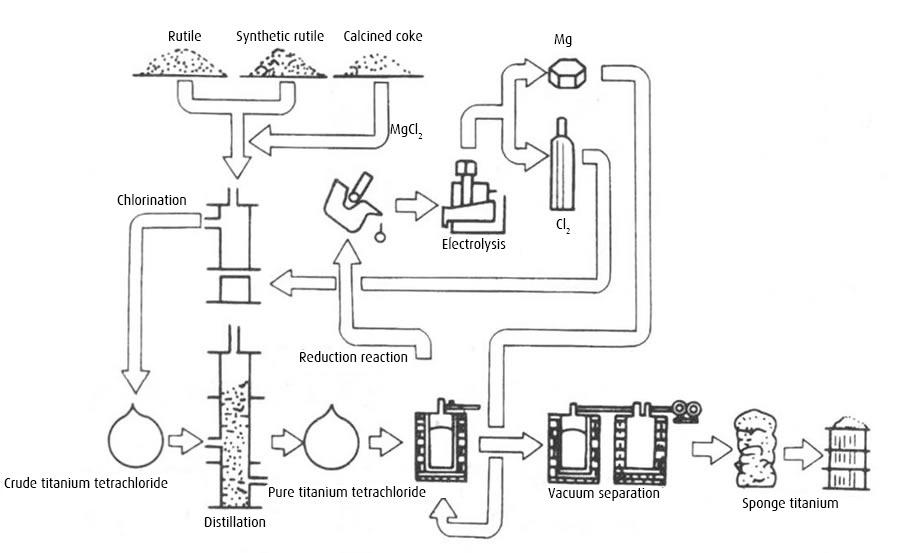

The extraction of titanium from rutile involves several key steps, primarily through the Kroll process. This method is the most widely used for producing titanium sponge, a crucial intermediate product in the titanium supply chain.
Before extraction, rutile ore must be prepared. This involves crushing and grinding the ore to liberate the titanium dioxide from other minerals. The crushed ore is then subjected to various separation techniques, such as magnetic and gravity separation, to enhance the concentration of TiO₂. This preparation is critical, as the purity of the titanium dioxide directly affects the efficiency of the subsequent chlorination process.
The grinding process typically reduces the ore to a fine powder, which increases the surface area for chemical reactions. This step is essential for maximizing the yield of titanium during extraction. Additionally, the separation techniques employed help to remove impurities such as iron and other metal oxides, ensuring that the final product is of high quality.
Once the rutile is prepared, it undergoes chlorination. In this process, the titanium dioxide is reacted with chlorine gas at high temperatures (around 900°C) to produce titanium tetrachloride (TiCl₄). This reaction is crucial, as TiCl₄ is a volatile compound that can be easily reduced to titanium metal in the next step.
The chlorination process is typically carried out in a fluidized bed reactor, where the powdered rutile is mixed with chlorine gas. The high temperatures facilitate the reaction, allowing for the efficient conversion of TiO₂ into TiCl₄. The chemical reaction can be summarized as follows:
\[ \text{TiO}_2 + 2\text{Cl}_2 \rightarrow \text{TiCl}_4 + \text{O}_2 \]
The production of TiCl₄ is a critical milestone in titanium extraction, as it serves as the precursor for the reduction process. The efficiency of this step significantly impacts the overall yield of titanium sponge.
The titanium tetrachloride is then reduced to titanium sponge using magnesium in a process known as the Kroll process. This reduction occurs in a sealed reactor under an inert atmosphere to prevent contamination. The Kroll process is favored for its ability to produce high-purity titanium, which is essential for many applications, particularly in aerospace and medical fields.
Chemical Reaction:
\[ \text{TiCl}_4 + 2\text{Mg} \rightarrow 2\text{MgCl}_2 + \text{Ti} \]
During this reaction, magnesium chloride (MgCl₂) is produced alongside titanium sponge, which appears as a porous, brittle material. The reduction process typically takes place at temperatures between 700°C and 1,000°C, allowing for the efficient conversion of TiCl₄ into titanium metal. The use of magnesium as a reducing agent is advantageous due to its high reactivity and low cost.
The resulting titanium sponge is characterized by its porous structure, which is a result of the gas evolution during the reduction process. This sponge-like appearance is not only a defining feature of the material but also influences its subsequent processing and applications.
After the reduction, the titanium sponge contains impurities, primarily magnesium and magnesium chloride. To purify the sponge, it undergoes a pyro-vacuum distillation process, which removes these impurities, resulting in high-purity titanium. This purification step is crucial for ensuring that the final titanium product meets the stringent quality standards required for various industrial applications.
The pyro-vacuum distillation process involves heating the titanium sponge in a vacuum environment, allowing for the selective removal of magnesium and magnesium chloride. This method is effective in achieving high levels of purity, as it minimizes the risk of contamination from external sources. The purified titanium sponge is then ready for further processing into ingots or other forms.
The purified titanium sponge is then crushed into smaller granules. These granules are compacted under high pressure to form a uniform block, which is essential for the subsequent melting process. The crushing and compaction steps are critical for ensuring that the titanium is in a suitable form for melting, as the density and uniformity of the material directly affect the quality of the final product.
During compaction, the granules are subjected to significant pressure, which helps to eliminate any remaining porosity and create a dense, solid mass. This process not only prepares the titanium for melting but also enhances its mechanical properties, making it more suitable for various applications.
The compacted titanium is melted in a vacuum arc remelting (VAR) furnace. This process ensures that the final titanium ingots are free from contaminants and possess the desired mechanical properties. The VAR process is widely used in the titanium industry due to its ability to produce high-quality ingots with minimal impurities.
In the VAR furnace, the compacted titanium is melted using an electric arc, which generates the high temperatures necessary for melting. The vacuum environment prevents oxidation and contamination, ensuring that the final product is of the highest quality. Once melted, the titanium can be cast into ingots, which are then further processed into various forms, including sheets, plates, and bars.
Titanium sponge is a crucial intermediate product in the titanium supply chain. It is used to produce titanium ingots, which are further processed into various forms, including sheets, plates, and bars. These products find applications in a wide range of industries, including:
- Aerospace: Components for aircraft and spacecraft, where lightweight and high-strength materials are essential for performance and safety.
- Medical: Implants and surgical instruments, where biocompatibility and corrosion resistance are critical for patient safety and device longevity.
- Automotive: Lightweight parts for performance vehicles, contributing to fuel efficiency and overall vehicle performance.
- Chemical Processing: Equipment resistant to corrosion, ensuring durability and reliability in harsh environments.
The versatility of titanium makes it an attractive choice for various applications, and the demand for titanium products continues to grow as industries seek to improve performance and reduce weight.
The titanium extraction process, particularly the Kroll process, has environmental implications. The use of chlorine and the generation of magnesium chloride require careful management to minimize environmental impact. Additionally, the energy-intensive nature of the process raises concerns about carbon emissions.
Efforts are being made to improve the sustainability of titanium production by exploring alternative methods and technologies. For instance, researchers are investigating the potential of using renewable energy sources in the extraction process and developing more efficient recycling methods for titanium scrap. These advancements could help reduce the overall environmental footprint of titanium production.
As demand for titanium continues to grow, there is ongoing research into more sustainable and efficient methods of production. Innovations in extraction techniques and recycling processes are being explored to reduce the environmental footprint of titanium production. The industry is also looking at alternative sources of titanium, such as titanium-bearing minerals that may offer more sustainable extraction options.
In addition to improving extraction methods, there is a push for greater recycling of titanium materials. The recycling of titanium scrap not only conserves resources but also reduces the energy required for production. As the industry evolves, the focus on sustainability and efficiency will play a crucial role in shaping the future of titanium production.
The transformation of rutile into titanium sponge is a complex process that involves several critical steps, from ore preparation to purification and melting. Understanding this process is essential for appreciating the value of titanium in modern applications. As industries continue to seek lightweight and durable materials, the importance of titanium and its extraction processes will only increase.
1. What is the Kroll process?
The Kroll process is the primary method for producing titanium sponge, involving the reduction of titanium tetrachloride with magnesium. This process is favored for its ability to produce high-purity titanium, which is essential for many applications, particularly in aerospace and medical fields.
2. Why is titanium sponge important?
Titanium sponge is a high-purity form of titanium that serves as an intermediate product for producing titanium ingots used in various industries. Its unique properties make it suitable for applications requiring strength, low weight, and corrosion resistance.
3. What are the environmental impacts of titanium production?
The production process can generate waste and emissions, particularly from the use of chlorine and the energy required for extraction. Efforts are being made to improve sustainability through alternative methods and recycling processes.
4. How is titanium sponge purified?
Titanium sponge is purified through pyro-vacuum distillation, which removes impurities like magnesium and magnesium chloride. This step is crucial for ensuring that the final titanium product meets stringent quality standards.
5. What are the main applications of titanium?
Titanium is used in aerospace, medical devices, automotive parts, and chemical processing equipment due to its strength and corrosion resistance. Its versatility makes it an attractive choice for various applications across multiple industries.
