Titanium bars are a cornerstone in the medical device manufacturing industry due to their exceptional properties such as biocompatibility, corrosion resistance, and high strength-to-weight ratio. Selecting the best titanium bar for medical applications involves understanding the types of titanium alloys, shapes, and manufacturing processes that meet the stringent requirements of medical devices. This article explores the best titanium bars for medical device manufacturing, their properties, applications, and benefits, supported by relevant images and videos to illustrate their use.
Titanium has revolutionized the medical device sector by offering a unique combination of mechanical and biological properties that few other metals can match. Unlike traditional materials such as stainless steel or cobalt-chrome alloys, titanium provides superior corrosion resistance in the harsh environment of the human body. This resistance prevents metal ion release and allergic reactions, which are critical for patient safety. Furthermore, titanium's high strength-to-weight ratio means implants can be made lighter without sacrificing durability, significantly improving patient comfort and mobility. The non-magnetic nature of titanium also allows safe use in diagnostic imaging environments, such as MRI, without interference or risk to the patient. These advantages make titanium bars indispensable raw materials for manufacturing a wide range of medical devices, from orthopedic implants to dental prosthetics and surgical instruments.
The Ti 6Al-4V ELI alloy is the gold standard in medical-grade titanium bars. This alloy is carefully engineered to have extremely low levels of interstitial elements like oxygen, nitrogen, and carbon, which could otherwise compromise toughness and fatigue resistance. The result is an alloy that not only meets but exceeds the rigorous standards for implantable medical devices. Its excellent mechanical properties include high tensile strength and fatigue resistance, which are essential for load-bearing implants such as hip and knee replacements. Additionally, the alloy's corrosion resistance ensures long-term stability in the aggressive biochemical environment of the body. This alloy's versatility extends beyond implants to include surgical tools that require precision and durability. Its widespread acceptance in the medical field is supported by extensive biocompatibility testing and regulatory approvals worldwide.
While Ti 6Al-4V ELI dominates the market, other titanium grades are also utilized depending on the specific requirements of the device. Commercially pure titanium (Grades 1-4) is often chosen for applications where extreme strength is less critical but excellent corrosion resistance and biocompatibility are still required, such as in dental implants and certain surgical instruments. These grades offer superior ductility and formability, allowing manufacturers to create intricate shapes and thin-walled components. Other specialized alloys, sometimes containing elements like niobium or tantalum, are under development to optimize properties like elasticity or radiopacity. The selection of the alloy depends on balancing mechanical demands, manufacturing capabilities, and regulatory compliance.
Hexagonal titanium bars are particularly favored for manufacturing components that require efficient machining and minimal material waste. The six-sided shape allows for better grip and torque transmission in surgical tools, which is crucial during delicate procedures where precision and control are paramount. The flat surfaces of hex bars facilitate easier clamping and alignment during machining, reducing production time and costs. In dental applications, hex bars are often used to produce abutments and implant components that require precise geometries to ensure secure fitting and load distribution. Their shape also allows for modular assembly in complex devices, improving versatility and customization options for patient-specific solutions.

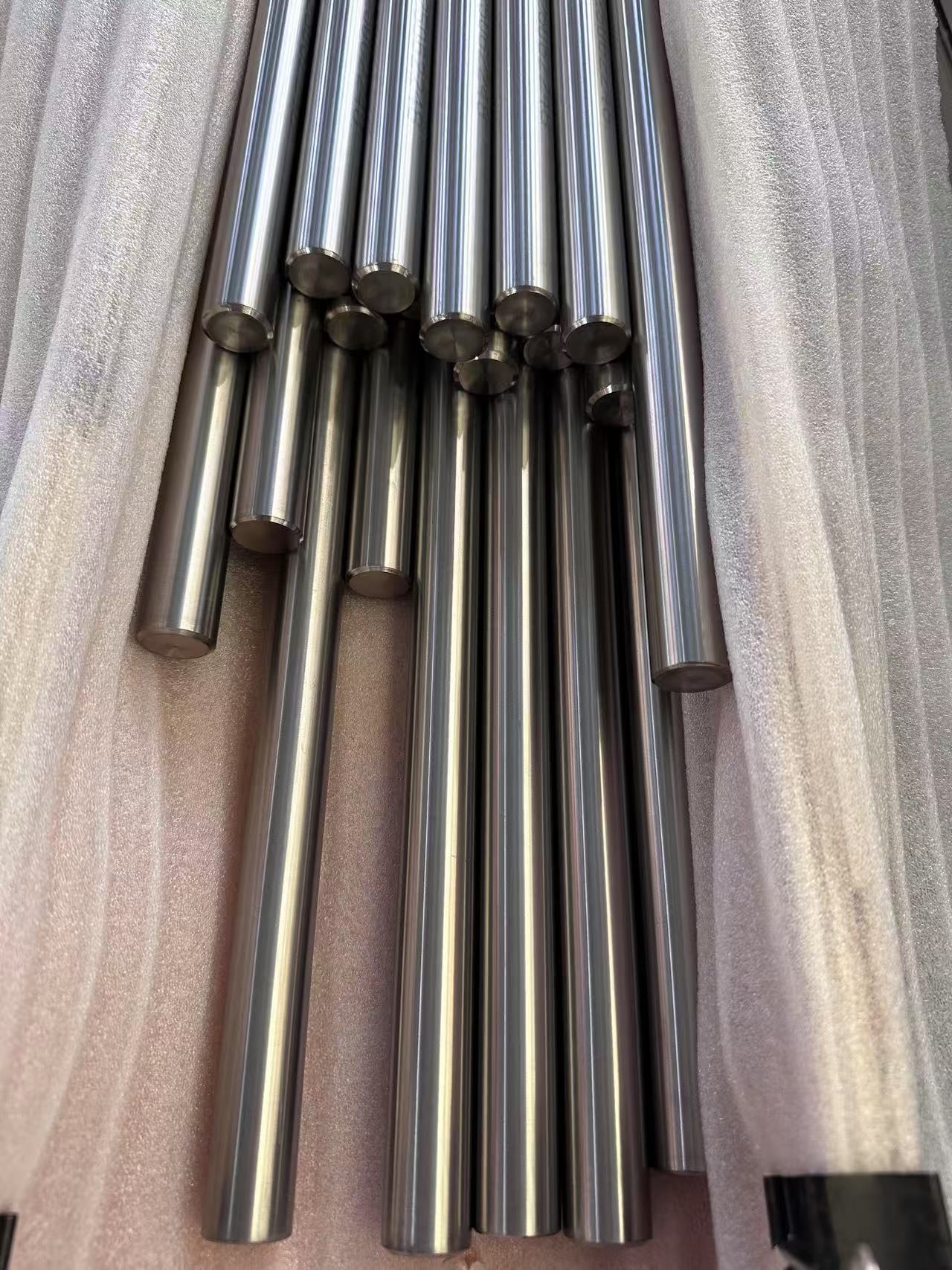

Cylindrical titanium bars are the most common form used in medical device manufacturing due to their versatility. Their uniform cross-section makes them ideal for turning, milling, and grinding into a wide variety of shapes, from simple rods to complex implant geometries. These bars are essential in producing orthopedic rods, screws, and dental implants that must withstand cyclic loading and biomechanical stresses. The smooth surface of cylindrical bars also aids in achieving superior surface finishes, which is critical for reducing wear and promoting osseointegration—the process by which bone bonds with the implant surface. Additionally, cylindrical bars can be easily customized in diameter and length to meet specific surgical requirements, offering manufacturers flexibility in design and production.
Titanium's biocompatibility is unmatched among metals used in medical devices. It forms a stable oxide layer on its surface that prevents corrosion and inhibits the release of metal ions into surrounding tissues. This passive film also promotes cellular adhesion and growth, facilitating integration with bone and soft tissues. As a result, titanium implants are less likely to cause inflammation, allergic reactions, or rejection, which significantly improves patient outcomes. This property is especially critical for permanent implants such as joint replacements and dental fixtures, where long-term compatibility is essential.
The human body presents a highly corrosive environment due to the presence of salts, enzymes, and varying pH levels. Titanium bars resist this corrosion better than most metals, maintaining their structural integrity and surface quality over extended periods. This resistance reduces the risk of implant degradation, which can lead to mechanical failure or the release of harmful particles. The corrosion resistance also ensures that surgical instruments maintain their sharpness and precision after repeated sterilization cycles, enhancing their safety and effectiveness.
Titanium's exceptional strength-to-weight ratio allows medical devices to be both strong and lightweight. This is particularly advantageous in orthopedic implants, where reducing the implant's weight can minimize patient discomfort and facilitate easier mobility during recovery. Lightweight implants also reduce stress shielding—a phenomenon where the implant takes too much load, causing surrounding bone to weaken. By closely matching the mechanical properties of bone, titanium bars help maintain bone health and promote natural healing processes.
Titanium's non-magnetic nature makes it compatible with magnetic resonance imaging (MRI) and other diagnostic tools that rely on magnetic fields. This compatibility is crucial for patients with implanted devices, as it allows for safe and accurate imaging without interference or risk of device displacement. This property also enables the use of titanium-based devices in neurological and cardiovascular applications, where imaging is often necessary for diagnosis and follow-up.
The combination of strength, corrosion resistance, and biocompatibility ensures that titanium bars provide long-term durability in medical devices. Implants made from titanium can last decades without significant degradation, reducing the need for revision surgeries and improving patient quality of life. This durability also translates to surgical instruments that maintain their performance over many procedures, offering cost savings and reliability for healthcare providers.
Titanium bars are extensively used to manufacture orthopedic implants such as hip and knee replacements, bone plates, screws, and spinal fixation devices. Their mechanical properties allow them to bear significant loads while promoting bone growth around the implant. The ability to customize titanium bars into complex shapes enables the production of patient-specific implants that fit anatomical variations precisely, improving surgical outcomes and recovery times. Furthermore, titanium's resistance to wear and corrosion ensures that these implants remain functional over many years, even under the demanding conditions of joint movement and weight-bearing.
In dentistry, titanium bars form the backbone of implant-supported prosthetics. They are machined into abutments, mini-bars, and frameworks that anchor artificial teeth securely to the jawbone. The biocompatibility of titanium encourages osseointegration, which is critical for the stability and longevity of dental implants. Advances in digital dentistry allow for the precise design and fabrication of titanium bars that match individual patient anatomy, resulting in more comfortable and natural-feeling prosthetics. These bars also support full-arch restorations, providing a durable and esthetic solution for patients with extensive tooth loss.
Titanium bars are used to produce a wide range of surgical instruments including forceps, scissors, clamps, and needle holders. These instruments benefit from titanium's lightweight nature, which reduces surgeon fatigue during long procedures. The metal's high strength and corrosion resistance ensure that instruments remain sharp, reliable, and easy to sterilize. Additionally, titanium's non-magnetic properties make these tools safe for use in operating rooms equipped with MRI or other imaging technologies. The combination of durability and ergonomics enhances surgical precision and patient safety.
Beyond orthopedic and dental applications, titanium bars are integral to the manufacture of implantable medical devices such as pacemakers, neurostimulators, and hearing implants. These devices require materials that can withstand the body's environment without degrading or causing adverse reactions. Titanium's excellent mechanical and biological properties make it ideal for housing electronic components and providing structural support. Its compatibility with imaging techniques also facilitates device monitoring and adjustment post-implantation.
The journey of titanium bars begins with the extraction of titanium from mineral ores such as rutile and ilmenite. The Kroll process is the primary industrial method used to convert these ores into titanium sponge, a porous form of titanium metal. This sponge undergoes melting and refining to remove impurities and achieve the desired chemical composition for medical-grade alloys. The purity and quality of the raw material are critical, as contaminants can affect the mechanical properties and biocompatibility of the final product.
To produce medical-grade titanium bars, the titanium sponge is melted in vacuum arc remelting furnaces with precise amounts of alloying elements like aluminum and vanadium. This controlled process ensures uniform alloy composition and eliminates defects. The resulting ingots are then subjected to hot working processes such as forging and rolling to form bars with the required shape and mechanical properties. Strict quality control measures, including chemical analysis and mechanical testing, verify that the bars meet medical standards.
The forged titanium ingots are further processed into bars of various cross-sectional shapes, including cylindrical and hexagonal. This forming stage involves hot rolling, extrusion, or drawing to achieve precise dimensions and surface finishes. The choice of forming method depends on the desired bar characteristics and the requirements of downstream machining. The bars must exhibit uniform microstructure and mechanical properties to ensure consistent performance in medical devices.
Titanium bars are machined using advanced CNC equipment to create complex geometries required for medical implants and instruments. Machining titanium demands specialized tools and techniques due to its hardness and tendency to work-harden. Manufacturers employ coolant systems and optimized cutting parameters to maintain dimensional accuracy and surface quality. Post-machining treatments such as polishing and passivation enhance corrosion resistance and prepare the surface for sterilization and implantation.
The integration of digital technologies in medical device manufacturing has transformed the use of titanium bars. Computer-aided design (CAD) and computer-aided manufacturing (CAM) enable the creation of patient-specific implants and instruments tailored to individual anatomical needs. Advanced imaging techniques such as CT and MRI scans provide detailed data that guide the design process, ensuring optimal fit and function. Additive manufacturing and hybrid machining approaches are also emerging, allowing for complex titanium structures that were previously impossible to produce. These innovations improve surgical outcomes, reduce operation times, and enhance patient satisfaction.
A significant advancement in dental implantology is the use of titanium bars to support full mouth restorations. This technique involves placing multiple titanium implants into the jawbone and connecting them with a custom-fabricated titanium bar that distributes chewing forces evenly. The bar provides a stable and durable foundation for prosthetic teeth, restoring function and aesthetics for patients with extensive tooth loss. This approach reduces the need for bone grafting and shortens treatment times. The precision and strength of titanium bars make them ideal for this demanding application, offering long-term success and patient comfort.
Q1: What makes Ti 6Al-4V ELI the preferred titanium alloy for medical bars?
A1: Ti 6Al-4V ELI offers an optimal balance of strength, corrosion resistance, and biocompatibility, making it suitable for load-bearing implants and surgical tools that require durability and safety.
Q2: Are titanium bars safe to remain inside the human body long-term?
A2: Yes, titanium's stable oxide layer and biocompatibility prevent adverse reactions, allowing implants made from titanium bars to function safely for decades.
Q3: Can titanium bars interfere with MRI scans?
A3: No, titanium is non-magnetic, so it does not interfere with MRI imaging, making it safe for patients who require such diagnostic procedures.
Q4: What shapes of titanium bars are used in medical device manufacturing?
A4: Hexagonal and cylindrical bars are most commonly used, chosen based on machining efficiency and the specific design requirements of the medical device.
Q5: How does titanium compare to stainless steel in surgical instruments?
A5: Titanium instruments are lighter, more corrosion-resistant, and non-magnetic, reducing surgeon fatigue and improving safety, though they may be more expensive.
