Titanium forgings are critical components in various industries, including aerospace, automotive, and medical applications. The quality and certification of these forgings are paramount to ensure safety, reliability, and performance. This article will delve into the methods and standards used to verify the quality of titanium forgings, the importance of certification, and the processes involved in ensuring that these materials meet stringent industry requirements.

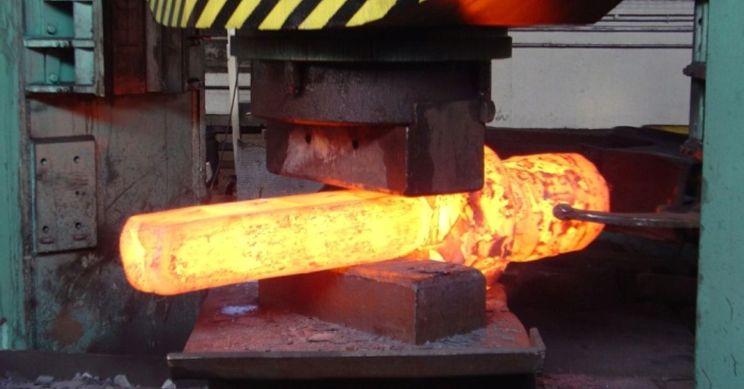

Titanium forging is a manufacturing process that involves shaping titanium metal through the application of compressive forces. This process enhances the material's mechanical properties, making it stronger and more durable. Titanium forgings are often used in applications where high strength-to-weight ratios and corrosion resistance are essential. The forging process typically involves heating the titanium to a malleable state and then applying pressure to form it into the desired shape. This method not only improves the material's structural integrity but also refines its grain structure, resulting in superior mechanical properties compared to cast titanium.
The versatility of titanium forgings allows them to be used in a wide range of applications, from aircraft components to medical implants. In aerospace, for instance, titanium forgings are used in critical parts such as landing gear and engine components, where strength and weight are crucial. In the medical field, titanium's biocompatibility makes it an ideal choice for implants and prosthetics.
The quality of titanium forgings directly impacts the performance and safety of the final product. Defects in the forging process can lead to catastrophic failures, especially in critical applications such as aerospace and medical devices. Therefore, rigorous quality assurance measures are necessary to ensure that titanium forgings meet the required specifications and standards.
Quality assurance in titanium forging encompasses various aspects, including the selection of raw materials, the forging process itself, and the final inspection of the products. Each stage of production must be carefully monitored to prevent defects that could compromise the integrity of the forgings. For example, impurities in the raw titanium can lead to weaknesses in the final product, while improper forging techniques can result in internal stresses that may cause failure under load.
Non-destructive testing is a crucial method for assessing the integrity of titanium forgings without causing any damage. Various NDT techniques can be employed, including:
- Ultrasonic Testing: This method uses high-frequency sound waves to detect internal flaws and measure material thickness. It is effective in identifying cracks, voids, and inclusions within the titanium structure. Ultrasonic testing is particularly valuable because it can provide detailed information about the internal condition of the material without altering its properties.
- Radiographic Testing: X-rays or gamma rays are used to create images of the internal structure of the forgings. This technique helps in identifying internal defects that may not be visible on the surface. Radiographic testing is widely used in industries where safety is paramount, as it can reveal issues that could lead to catastrophic failures.
- Magnetic Particle Testing: This method is used to detect surface and near-surface defects in ferromagnetic materials. It involves applying a magnetic field and using iron particles to reveal flaws. Magnetic particle testing is particularly useful for identifying cracks and other surface imperfections that could compromise the performance of the forgings.
Mechanical property testing is essential to verify that titanium forgings meet the required strength and ductility specifications. Key tests include:
- Tensile Testing: This test measures the material's response to tension, providing data on yield strength, ultimate tensile strength, and elongation. For titanium, specific standards dictate the minimum acceptable values for these properties. Tensile testing is critical for understanding how the material will behave under load, which is especially important in applications where safety is a concern.
- Hardness Testing: Hardness tests, such as Brinell or Rockwell, assess the material's resistance to deformation. This information is critical for applications where wear resistance is a concern. Hardness testing can also provide insights into the material's microstructure and processing history, helping to identify any potential issues.
- Impact Testing: This test evaluates the toughness of the material by measuring its ability to absorb energy during fracture. It is particularly important for applications subjected to dynamic loads. Impact testing helps ensure that the titanium forgings can withstand sudden forces without failing, which is crucial in many industrial applications.
Metallographic inspection involves examining the microstructure of titanium forgings to assess their quality. This process typically includes:
- Sample Preparation: Samples are cut, ground, polished, and etched to reveal the microstructure. Proper sample preparation is essential for obtaining accurate results, as any imperfections introduced during this process can affect the findings.
- Microscopic Examination: The prepared samples are examined under a microscope to identify grain structure, phase distribution, and any anomalies that could affect performance. This inspection helps in understanding how the forging process has influenced the material properties and can indicate potential issues such as improper heat treatment or contamination.
Metallographic inspection is a powerful tool for quality assurance, as it provides insights into the material's history and processing. By analyzing the microstructure, manufacturers can identify any deviations from expected norms and take corrective actions to ensure consistent quality.
Verifying the chemical composition of titanium forgings is essential to ensure they meet industry standards. Techniques used for chemical analysis include:
- Spectral Analysis: This method provides a rapid and accurate assessment of the elemental composition of titanium forgings. It helps verify that the material conforms to specified grades and standards. Spectral analysis is particularly useful for detecting trace elements that could affect the material's performance.
- X-ray Fluorescence (XRF): XRF is a non-destructive technique that can quickly determine the elemental composition of materials, making it useful for quality control in titanium forgings. This method allows for real-time analysis, enabling manufacturers to make immediate decisions regarding material quality.
Chemical composition analysis is critical for ensuring that titanium forgings meet the required specifications for their intended applications. Deviations in composition can lead to significant performance issues, making this step essential in the quality assurance process.
The surface condition of titanium forgings is critical for their performance. Inspections typically focus on:
- Visual Inspection: A thorough visual examination can reveal surface defects such as cracks, folds, or inclusions. Visual inspection is often the first line of defense in quality control, allowing for the quick identification of obvious issues.
- Surface Roughness Measurement: This assessment ensures that the surface finish meets the required specifications for the intended application. Surface roughness can significantly impact the performance of titanium forgings, particularly in applications where tight tolerances are necessary.
Surface condition inspection is vital for ensuring that the titanium forgings will perform as expected in their intended applications. By identifying and addressing surface defects, manufacturers can enhance the reliability and longevity of their products.
Titanium forgings must comply with various industry standards to ensure quality and safety. Key standards include:
- ASTM B381: This standard covers the specifications for titanium and titanium alloy forgings, detailing requirements for chemical composition, mechanical properties, and testing methods. Compliance with ASTM B381 is essential for manufacturers seeking to demonstrate the quality and reliability of their products.
- ASME SB-381: Similar to ASTM B381, this specification outlines the requirements for annealed titanium and titanium forgings, ensuring they are free from defects and meet performance criteria. Adherence to these standards is crucial for manufacturers in industries such as aerospace and defense, where safety is paramount.
Manufacturers of titanium forgings often implement quality management systems (QMS) to ensure consistent quality. These systems typically include:
- ISO 9001 Certification: This internationally recognized standard outlines the requirements for a quality management system, ensuring that organizations consistently meet customer and regulatory requirements. ISO 9001 certification demonstrates a commitment to quality and continuous improvement.
- NADCAP Accreditation: The National Aerospace and Defense Contractors Accreditation Program (NADCAP) provides a standardized approach to quality assurance in aerospace manufacturing, including titanium forgings. NADCAP accreditation is often required by major aerospace manufacturers and serves as a mark of quality and reliability.
Traceability is crucial in the titanium forging industry. Manufacturers must maintain detailed records of:
- Material Sources: Documentation should include the origin of raw materials, including ingot sources and processing history. This traceability ensures that all materials can be accounted for and verified.
- Inspection and Testing Results: All testing and inspection results should be documented to provide a comprehensive quality assurance record. This documentation is essential for demonstrating compliance with industry standards and for addressing any potential issues that may arise.
- Certification Documentation: Certificates of compliance and other relevant documents must be readily available to demonstrate adherence to industry standards. This documentation is critical for maintaining customer trust and ensuring that products meet the required specifications.
Verifying the quality and certification of titanium forgings is a multifaceted process that involves various testing methods, adherence to industry standards, and meticulous documentation. By implementing rigorous quality assurance measures, manufacturers can ensure that their titanium forgings meet the highest standards of performance and safety. This commitment to quality not only enhances the reliability of the products but also builds trust with customers and stakeholders in critical industries.
Common testing methods include non-destructive testing (NDT), mechanical property testing, metallographic inspection, chemical composition analysis, and surface condition inspection.
Metallographic inspection helps assess the microstructure of titanium forgings, revealing information about grain structure and potential defects that could affect performance.
Key standards include ASTM B381 and ASME SB-381, which outline specifications for chemical composition, mechanical properties, and testing methods.
Chemical composition is typically analyzed using spectral analysis and X-ray fluorescence (XRF) techniques to ensure compliance with specified grades.
Traceability ensures that all materials and processes can be tracked, providing a comprehensive record of quality assurance and compliance with industry standards.
