Titanium is a highly valued metal known for its exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. The journey from titanium sponge, a porous form of titanium, to solid titanium ingots is a critical process in the titanium manufacturing industry. This article will explore the various stages involved in this transformation, detailing the processes, technologies, and key steps necessary to produce high-quality titanium ingots.
Titanium sponge is produced through the Kroll process, which involves reducing titanium tetrachloride (TiCl4) with magnesium in a high-temperature environment. The result is a porous, spongy form of titanium that contains a high level of purity, typically around 99% titanium. This sponge is the primary raw material used in the production of titanium ingots.
Titanium sponge is characterized by its unique structure, which consists of a network of interconnected pores. This porosity not only contributes to its lightweight nature but also facilitates the melting process, as the sponge can be easily compacted and shaped into electrodes for further melting. The high purity of titanium sponge makes it suitable for applications in industries that demand stringent quality standards, such as aerospace and medical devices.
Titanium sponge possesses several key properties that make it an ideal starting material for ingot production:
- High Purity: The Kroll process ensures that the titanium sponge is free from many impurities, making it suitable for high-performance applications. The purity of the sponge is crucial, as even trace amounts of contaminants can significantly affect the mechanical properties of the final ingot.
- Porosity: The sponge structure allows for easy melting and processing, as it can be compacted and shaped into electrodes for further melting. This porosity also aids in the uniform distribution of heat during the melting process, ensuring a consistent quality in the resulting ingots.
- Lightweight: Titanium sponge is significantly lighter than many other metals, which is advantageous in applications where weight is a critical factor. This lightweight characteristic is particularly beneficial in aerospace applications, where reducing weight can lead to improved fuel efficiency and performance.
The transformation of titanium sponge into titanium ingots involves several key steps, each critical to ensuring the quality and performance of the final product.
Before the titanium sponge can be melted into ingots, it must be purified to remove any residual impurities, such as magnesium and magnesium chloride. This purification process typically involves vacuum distillation or leaching, which helps to ensure that the final ingot is of the highest quality.
During the purification process, the titanium sponge is subjected to high temperatures in a vacuum environment, which allows for the removal of volatile impurities. This step is essential, as impurities can lead to defects in the final ingot, such as inclusions or variations in mechanical properties. The goal is to achieve a titanium sponge with a purity level that meets or exceeds industry standards, ensuring that the final product will perform reliably in its intended applications.
Once purified, the titanium sponge is compacted into a dense form. This is often achieved through mechanical pressing, where the sponge is compressed into a solid mass. The compacted sponge is then welded into a long, cylindrical electrode using plasma arc welding. This electrode will serve as the consumable material during the melting process.
The compaction process is critical, as it influences the density and uniformity of the electrode. A well-compacted electrode ensures that the melting process proceeds smoothly, with minimal risk of defects in the final ingot. The plasma arc welding technique used to join the sponge pieces together provides a strong bond, ensuring that the electrode maintains its integrity during the melting process.
The next step in the transformation process is vacuum arc remelting (VAR). This process is critical for producing high-quality titanium ingots, as it allows for precise control over the melting environment. The VAR process involves creating an electric arc between the consumable electrode and a water-cooled copper crucible. The heat generated by the arc melts the titanium sponge, which then flows into the crucible to form a molten pool.
- Inert Atmosphere: The melting occurs in a vacuum or inert gas atmosphere to prevent contamination from oxygen, nitrogen, and other elements that could compromise the quality of the titanium. This controlled environment is essential for producing titanium with the desired mechanical properties and microstructure.
- Controlled Melting: The VAR process allows for careful control of the melting rate and temperature, ensuring uniformity in the resulting ingot. By adjusting the parameters of the melting process, manufacturers can influence the grain structure of the titanium, which in turn affects its strength and ductility.
- Multiple Melting Cycles: In many cases, the VAR process is performed in multiple cycles to achieve the desired quality. Each cycle allows for further refinement of the titanium, removing any remaining impurities and ensuring a homogeneous material.

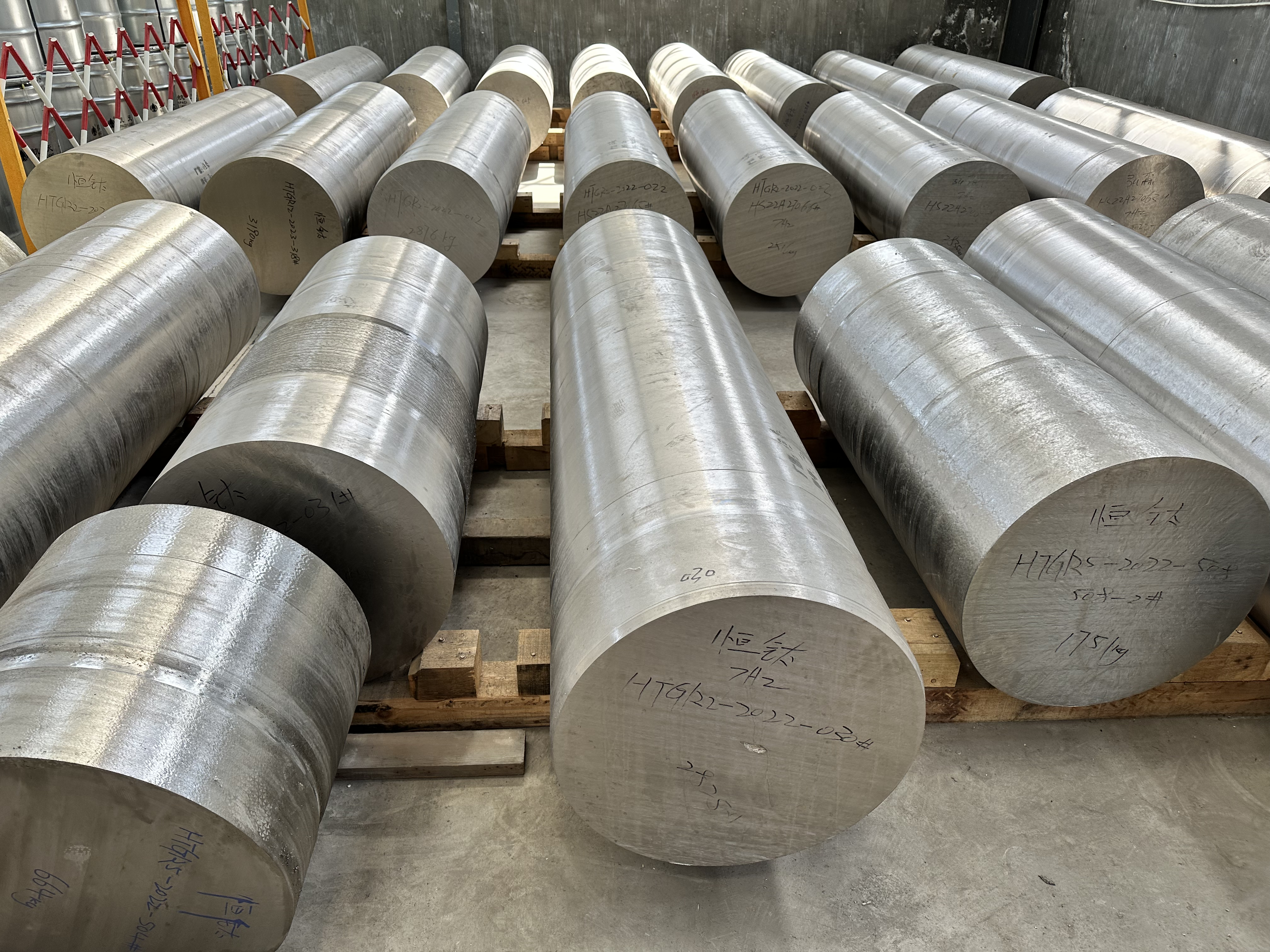

Once the titanium sponge has melted, the molten titanium is allowed to cool and solidify in the crucible, forming a titanium ingot. The cooling process must be carefully managed to avoid defects such as cracking or porosity in the final product.
The casting process is a critical step, as it determines the final shape and dimensions of the titanium ingot. The cooling rate can significantly influence the microstructure of the titanium, affecting its mechanical properties. A controlled cooling process helps to ensure that the ingot has a uniform structure, which is essential for its performance in subsequent applications.
After the ingot has solidified, it may undergo additional processing steps to enhance its properties. This can include:
- Heat Treatment: To relieve internal stresses and improve mechanical properties. Heat treatment can also help to refine the grain structure of the titanium, enhancing its strength and ductility.
- Machining: To achieve the desired dimensions and surface finish. Machining processes such as milling, turning, and grinding are often employed to produce ingots that meet specific tolerances and surface quality requirements.
- Quality Control: Rigorous testing and inspection to ensure that the ingot meets industry standards and specifications. This may involve non-destructive testing methods, such as ultrasonic testing or X-ray inspection, to detect any internal defects.
The transformation of sponge titanium into titanium ingots is a complex and critical process that involves several key steps, from purification to melting and casting. Each stage plays a vital role in ensuring the quality and performance of the final product. As industries continue to evolve, advancements in production methods and alloy development will shape the future of titanium ingots, making them an essential material for a wide range of applications.
1. What is titanium sponge?
- Titanium sponge is a porous form of titanium produced through the Kroll process, characterized by its high purity and lightweight properties.
2. How is titanium sponge purified before melting?
- Purification typically involves vacuum distillation or leaching to remove impurities such as magnesium and magnesium chloride.
3. What is the purpose of vacuum arc remelting (VAR)?
- VAR is used to melt the titanium sponge in a controlled environment, preventing contamination and ensuring high-quality ingots.
4. What are the latest advancements in titanium ingot production techniques?
- Recent advancements include improved melting technologies, enhanced alloying methods, and better quality control processes to ensure the production of high-performance titanium ingots.
5. How does the microstructure of titanium ingots affect their mechanical properties?
- The microstructure, including grain size and distribution, directly influences the strength, ductility, and toughness of titanium ingots, affecting their performance in various applications.
