Titanium is a highly valued metal known for its strength, lightweight properties, and resistance to corrosion. The journey from titanium sponge, a porous form of titanium, to titanium ingot, a solid and usable form, involves several critical steps. This article will explore the entire process, detailing each stage and its significance in producing high-quality titanium ingots.
Titanium sponge is produced through the Kroll process, which involves the reduction of titanium tetrachloride (TiCl₄) using magnesium or sodium. The resulting material is a porous, high-purity form of titanium that serves as the primary raw material for titanium ingot production. The sponge's unique structure allows for easy handling and processing, making it an essential component in the titanium manufacturing industry.
The production of titanium sponge is a critical step in the titanium manufacturing process. It begins with the extraction of titanium from its ores, primarily rutile and ilmenite. Once the titanium is extracted, it is converted into titanium tetrachloride through chlorination. The reduction of this compound yields titanium sponge, which is then purified and processed into various forms for industrial applications.
The titanium sponge is crucial for several reasons. First, it is a high-purity material, which is essential for applications requiring excellent mechanical properties and corrosion resistance. Second, the sponge form allows for efficient melting and processing into ingots. The purity and structure of the sponge directly influence the quality of the final titanium products, making it a vital step in the production chain.
The titanium sponge's porous nature not only facilitates the melting process but also enhances the material's surface area, which is beneficial for subsequent alloying and processing steps. This characteristic is particularly important in applications where the titanium must be combined with other metals to create alloys with specific properties, such as increased strength or improved corrosion resistance.
The conversion of titanium sponge to ingot involves several key steps, each critical to ensuring the quality and performance of the final product.
Before the titanium sponge can be melted into ingots, it must be purified to remove any residual impurities, such as magnesium and magnesium chloride. This purification process typically involves vacuum distillation or leaching, which helps to ensure that the final ingot is of the highest quality.
During this step, the titanium sponge is heated in a vacuum environment, allowing volatile impurities to evaporate. This process not only enhances the purity of the titanium but also prepares it for the subsequent melting stage. The removal of impurities is crucial, as even trace amounts of contaminants can significantly affect the mechanical properties of the final ingot, leading to issues such as brittleness or reduced ductility.

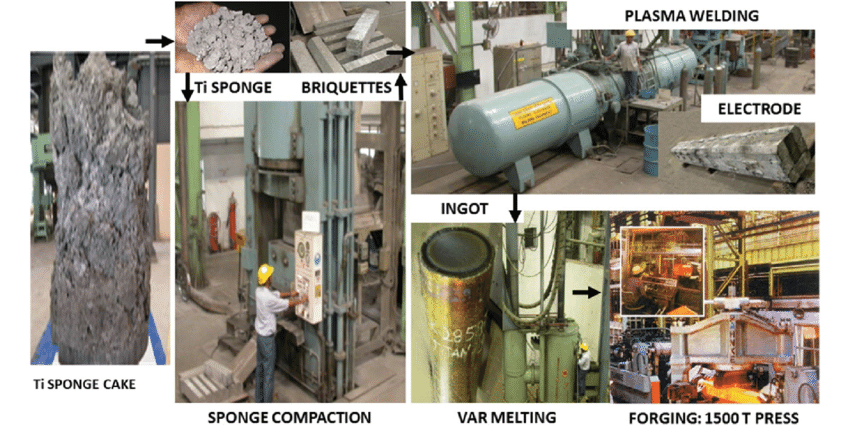

Once purified, the titanium sponge is crushed into smaller granules. This crushing process increases the surface area of the sponge, facilitating more efficient melting. The granules are then compacted under high pressure to form uniform blocks, which are essential for the melting process.
Compacting the sponge helps to eliminate any remaining porosity and ensures that the material is dense enough for effective melting. This step is crucial for achieving a homogeneous ingot with consistent properties. The compacted blocks are often referred to as briquettes, and their uniformity is vital for ensuring that the melting process proceeds smoothly and that the resulting ingots have uniform characteristics.
The compacted titanium sponge is then melted in a vacuum arc remelting (VAR) furnace. This process is critical for producing high-quality titanium ingots, as it allows for precise control over the melting environment. The VAR process involves creating an electric arc between a consumable electrode and the titanium sponge, generating the heat necessary to melt the material.
During melting, the vacuum environment prevents contamination from atmospheric gases, such as oxygen and nitrogen, which can adversely affect the properties of the titanium. The molten titanium is collected in a crucible, where it solidifies into an ingot. The VAR process is particularly advantageous because it not only melts the titanium but also refines it, helping to remove any remaining impurities and ensuring a high level of purity in the final product.
After melting, the molten titanium is cast into molds to form ingots. The casting process is carefully controlled to ensure that the ingots have the desired dimensions and properties. The molds are designed to facilitate the cooling and solidification of the titanium, allowing for the formation of high-quality ingots.
Once the titanium has cooled and solidified, the ingots are removed from the molds and inspected for quality. This inspection process is essential for ensuring that the ingots meet the required specifications for further processing and use. Any defects or inconsistencies in the ingots can lead to significant issues in downstream applications, making quality control a critical aspect of the production process.
After casting, the titanium ingots undergo finishing processes to remove any surface imperfections and ensure that they meet industry standards. This may involve machining, grinding, or polishing the ingots to achieve the desired surface finish.
Quality control is a critical aspect of the ingot production process. Each ingot is tested for mechanical properties, such as tensile strength and ductility, as well as for chemical composition. This ensures that the final product meets the stringent requirements of various applications, particularly in aerospace and medical industries. The rigorous testing and quality assurance processes help to guarantee that the titanium ingots will perform reliably in their intended applications.
Titanium ingots are used in a wide range of applications due to their unique properties. Some common uses include:
Titanium ingots are extensively used in the aerospace industry for manufacturing components such as airframes, engine parts, and fasteners. The lightweight and high-strength characteristics of titanium make it an ideal choice for reducing the overall weight of aircraft while maintaining structural integrity. The use of titanium in aerospace applications contributes to improved fuel efficiency and performance, making it a preferred material for modern aircraft design.
In the medical field, titanium ingots are used to produce implants, surgical instruments, and prosthetics. The biocompatibility of titanium ensures that these devices can be safely used within the human body without causing adverse reactions. Titanium's resistance to corrosion and wear makes it particularly suitable for long-term implants, such as hip and knee replacements, where durability and reliability are essential.
Titanium's excellent corrosion resistance makes it suitable for use in chemical processing equipment, such as reactors, heat exchangers, and piping systems. The durability of titanium helps to extend the lifespan of these components, reducing maintenance costs and downtime. In industries where corrosive substances are handled, titanium's ability to withstand harsh environments is invaluable.
Titanium ingots are also utilized in marine applications, where corrosion resistance is critical. Components such as propeller shafts, fasteners, and underwater structures benefit from the strength and durability of titanium. The use of titanium in marine environments helps to reduce the risk of corrosion-related failures, ensuring the longevity and reliability of critical components.
As the demand for titanium continues to grow, several trends are shaping the future of titanium ingot production:
With increasing awareness of environmental issues, there is a push for more sustainable practices in titanium production. This includes the development of recycling methods for titanium scrap and the use of renewable energy sources in the extraction and melting processes. Sustainable practices not only help reduce the environmental impact of titanium production but also contribute to cost savings for manufacturers.
Research into advanced titanium alloys is ongoing, with a focus on enhancing properties such as strength, corrosion resistance, and weldability. These innovations could lead to the development of new grades of titanium that meet the specific needs of various industries. The exploration of new alloying elements and combinations may result in titanium materials with superior performance characteristics.
The titanium ingot production process is becoming increasingly automated, leading to improved efficiency and reduced costs. Automation can help minimize human error, increase production rates, and ensure consistent quality in the final product. The integration of advanced technologies, such as artificial intelligence and machine learning, may further enhance process optimization and quality control.
The process of converting titanium sponge to ingot is a complex and critical step in the titanium manufacturing chain. Each stage, from purification to melting and casting, plays a vital role in ensuring the quality and performance of the final product. As industries continue to evolve, advancements in production methods and alloy development will shape the future of titanium ingots, making them an essential material for a wide range of applications.
1. What is the Kroll process?
The Kroll process is the primary method for producing titanium sponge, involving the reduction of titanium tetrachloride with magnesium.
2. Why is vacuum arc remelting important in titanium ingot production?
Vacuum arc remelting prevents contamination from atmospheric gases, ensuring high purity and quality in the final titanium ingots.
3. What applications are suitable for titanium ingots?
Titanium ingots are used in aerospace, medical devices, chemical processing equipment, and marine applications due to their strength and corrosion resistance.
4. How does the purity of titanium sponge affect the final ingot?
Higher purity levels in titanium sponge lead to better mechanical properties and corrosion resistance in the final ingot.
5. What trends are shaping the future of titanium ingot production?
Future trends include sustainable practices, advanced alloys, and increased automation in the production process.
