Machining titanium presents unique challenges due to its properties, including high strength, low density, and poor thermal conductivity. These characteristics make titanium a preferred material in various industries, including aerospace, automotive, and medical. However, to effectively cut titanium, the choice of tooling is critical, particularly the coatings applied to end mills. This article explores the various coatings available for end mills used in titanium machining, their benefits, and considerations for selecting the right coating. By understanding these factors, manufacturers can enhance their machining processes and improve overall efficiency.
End mill coatings are thin layers applied to the cutting tool's surface to enhance performance. These coatings improve wear resistance, reduce friction, and increase the tool's lifespan. The most common coatings for end mills include:
- Titanium Nitride (TiN)
- Titanium Carbonitride (TiCN)
- Titanium Aluminum Nitride (TiAlN)
- Diamond-like Carbon (DLC)
Each coating has distinct properties that make it suitable for specific applications, especially when machining challenging materials like titanium. The choice of coating can significantly impact the efficiency of the machining process, tool life, and the quality of the finished product.

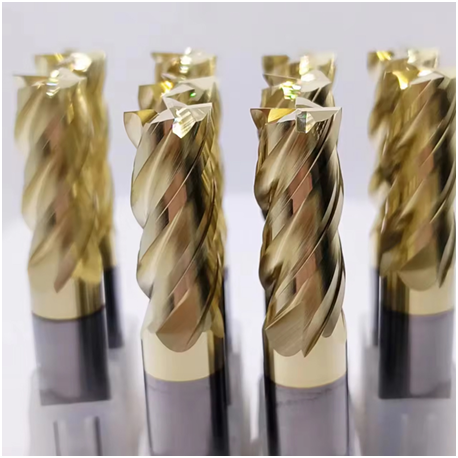

TiN is one of the most widely used coatings for end mills. It is characterized by its gold color and provides several advantages:
- High Hardness: TiN has a hardness of approximately 2,300 HV, making it suitable for general-purpose milling. This hardness allows the tool to maintain its cutting edge longer, reducing the frequency of tool changes.
- Temperature Resistance: It can withstand temperatures up to 600°C (1,100°F), allowing for higher cutting speeds. This property is particularly beneficial in high-speed machining applications where heat generation is a concern.
- Lubricity: The coating reduces friction, which helps in chip flow and minimizes heat generation during machining. This lubricity can lead to improved surface finishes and reduced wear on both the tool and the workpiece.
However, while TiN is effective for many applications, it may not be the best choice for high-speed machining of titanium due to its limited performance at elevated temperatures. Users should consider the specific machining conditions when selecting TiN-coated tools.
TiCN is a harder alternative to TiN, offering improved wear resistance and performance in high-temperature applications:
- Hardness: TiCN is harder than TiN, making it suitable for tougher materials. This increased hardness translates to better performance in demanding machining environments, particularly when working with titanium alloys.
- Abrasion Resistance: It excels in abrasive environments, which is beneficial when machining titanium alloys that may contain hard inclusions. The enhanced abrasion resistance helps maintain tool integrity and prolongs tool life.
- Versatility: TiCN can be used in various machining operations, including milling and drilling. Its adaptability makes it a popular choice among manufacturers looking for a reliable coating for multiple applications.
This coating is particularly effective for applications requiring high feed rates and speeds, making it a popular choice for titanium machining. Its ability to withstand the rigors of high-speed operations can lead to increased productivity and reduced cycle times.
TiAlN is another advanced coating that has gained popularity in recent years:
- High-Temperature Stability: TiAlN can withstand temperatures exceeding 1,000°C (1,832°F), making it ideal for high-speed machining. This high-temperature stability allows for aggressive cutting conditions without compromising tool performance.
- Oxidation Resistance: The coating provides excellent oxidation resistance, which is crucial when machining titanium. This property helps prevent the formation of oxides on the tool surface, which can lead to premature wear and failure.
- Improved Tool Life: TiAlN-coated tools often exhibit significantly longer tool life compared to uncoated or TiN-coated tools. The combination of high hardness and thermal stability contributes to this extended tool life, making TiAlN a preferred choice for many manufacturers.
This coating is particularly effective for high-performance applications, where maintaining tool integrity is essential. Its ability to perform under extreme conditions makes it a valuable asset in the machining of titanium and other difficult materials.
DLC coatings are known for their unique properties:
- Low Friction: DLC has a very low coefficient of friction, which reduces wear and heat generation. This low friction can lead to improved chip flow and reduced cutting forces, enhancing overall machining efficiency.
- Chemical Resistance: It is highly resistant to chemical reactions, making it suitable for machining reactive materials like titanium. This chemical stability helps prevent tool degradation in challenging environments.
- Versatile Applications: DLC coatings can be used in various machining processes, including milling, drilling, and turning. Their versatility makes them an attractive option for manufacturers looking to optimize their tooling solutions.
While DLC coatings are more expensive, their performance benefits can justify the cost in high-precision applications. The investment in DLC-coated tools can lead to significant savings in tool replacement costs and improved productivity.
When selecting an end mill coating for titanium machining, several factors should be considered:
Understanding the specific titanium alloy being machined is crucial. Different alloys may require different coatings based on their hardness, toughness, and thermal properties. For instance, some titanium alloys may be more prone to work hardening, necessitating a coating that can withstand such conditions.
The cutting speed, feed rate, and depth of cut will influence the choice of coating. For high-speed applications, coatings like TiAlN may be more suitable, while TiN may suffice for lower-speed operations. Additionally, the type of machining operation (e.g., roughing vs. finishing) can also dictate the best coating choice.
The design of the end mill, including flute shape and helix angle, can affect performance. Coatings should complement the tool geometry to maximize efficiency. For example, a tool with a higher helix angle may benefit from a coating that enhances chip evacuation.
While advanced coatings may offer superior performance, they also come at a higher cost. It's essential to balance performance needs with budget constraints. Manufacturers should evaluate the potential return on investment when considering the use of premium coatings.
Using coated end mills for titanium machining offers several advantages:
- Extended Tool Life: Coatings significantly increase the lifespan of cutting tools, reducing the frequency of replacements. This longevity can lead to lower overall tooling costs and less downtime for tool changes.
- Improved Surface Finish: Coated tools can produce better surface finishes due to reduced friction and improved chip flow. A better surface finish can enhance the quality of the final product and reduce the need for secondary operations.
- Higher Productivity: The ability to run at higher speeds and feeds leads to increased productivity and reduced cycle times. This efficiency can be a critical factor in competitive manufacturing environments.
Choosing the right end mill coating for titanium machining is critical for achieving optimal performance and tool longevity. By understanding the properties of various coatings and considering the specific machining conditions, manufacturers can enhance their machining processes and improve overall efficiency. The right coating not only extends tool life but also contributes to better surface finishes and increased productivity, making it a vital aspect of modern machining practices.
The best coating depends on the specific application, but Titanium Aluminum Nitride (TiAlN) is often recommended for high-speed machining due to its high-temperature stability and wear resistance.
Coatings enhance tool life by providing wear resistance, reducing friction, and allowing for higher cutting speeds, which minimizes heat generation. This combination helps maintain the integrity of the cutting edge over extended use.
While uncoated end mills can be used, they will wear out much faster and may not provide the desired surface finish or machining efficiency compared to coated tools. The increased wear can lead to higher costs and more frequent tool changes.
Signs include visible wear on the cutting edges, poor surface finish, increased cutting forces, and excessive heat generation during machining. Monitoring these indicators can help prevent costly downtime and ensure consistent machining quality.
Yes, coatings like Titanium Aluminum Nitride (TiAlN) are specifically designed for high-speed applications and provide excellent performance in machining titanium. Their ability to withstand high temperatures and resist wear makes them ideal for demanding machining conditions.
