Titanium has emerged as a cornerstone material in the medical device industry due to its unique properties, including biocompatibility, strength, and corrosion resistance. These characteristics make titanium an ideal choice for various medical applications, from surgical instruments to implants. The selection of titanium tubes for medical applications is a critical process that requires careful consideration of multiple factors to ensure optimal performance and safety. This article will guide you through the process of choosing the right titanium tube for medical devices, covering specifications, applications, and best practices.
Titanium is categorized into several grades, each with distinct properties suitable for different medical applications. The most commonly used grades include:
- Grade 1: This grade is known for its excellent corrosion resistance and high ductility, making it ideal for applications requiring formability. Its low strength makes it suitable for non-load-bearing applications, such as in surgical instruments where flexibility is essential. Grade 1 titanium is often used in applications where the material must be easily shaped or bent without breaking, allowing for intricate designs in surgical tools.
- Grade 2: Often used in surgical instruments and implants, Grade 2 offers a balance of strength and ductility. It is the most widely used titanium grade in the medical field due to its versatility and reliability in various environments. This grade is particularly favored for its ability to withstand the stresses of surgical procedures while maintaining a lightweight profile, making it easier for surgeons to handle instruments during operations.
- Grade 5 (Ti-6Al-4V): This alloy is widely used in load-bearing applications due to its high strength-to-weight ratio. It is particularly beneficial in orthopedic implants and dental applications where strength is critical. The addition of aluminum and vanadium enhances the mechanical properties of titanium, making it suitable for high-stress environments, such as joint replacements and dental fixtures.

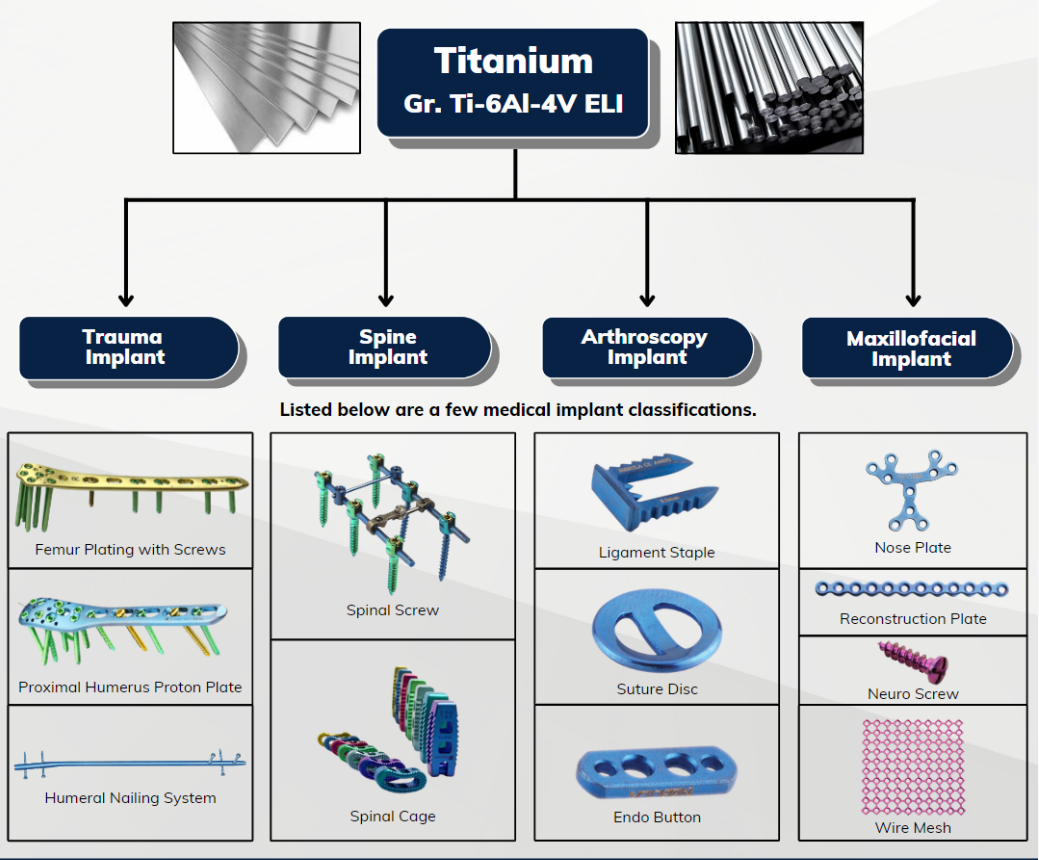

- Grade 23 (Ti-6Al-4V ELI): This extra low interstitial grade is preferred for medical implants due to its superior biocompatibility. It is often used in applications where long-term implantation is required, such as in joint replacements. The lower levels of interstitial elements in Grade 23 titanium reduce the risk of adverse reactions in the body, making it an excellent choice for permanent implants.
When choosing a titanium grade, consider the following factors:
- Application Requirements: Different medical devices have varying requirements for strength, flexibility, and corrosion resistance. For instance, orthopedic implants may require higher strength grades, while surgical instruments may benefit from the ductility of lower grades. Understanding the specific demands of each application is crucial for selecting the appropriate titanium grade.
- Biocompatibility: Ensure the selected grade meets biocompatibility standards to minimize adverse reactions in the body. This is particularly important for implants that will remain in the body for extended periods. Regulatory bodies, such as the FDA, have established guidelines for biocompatibility testing, which manufacturers must adhere to when developing new medical devices.
- Manufacturing Processes: Some grades are easier to machine and fabricate than others, impacting production efficiency. Understanding the manufacturing capabilities of your supplier can help in selecting the appropriate grade. For example, certain grades may require specialized machining techniques or tools, which can affect lead times and costs.

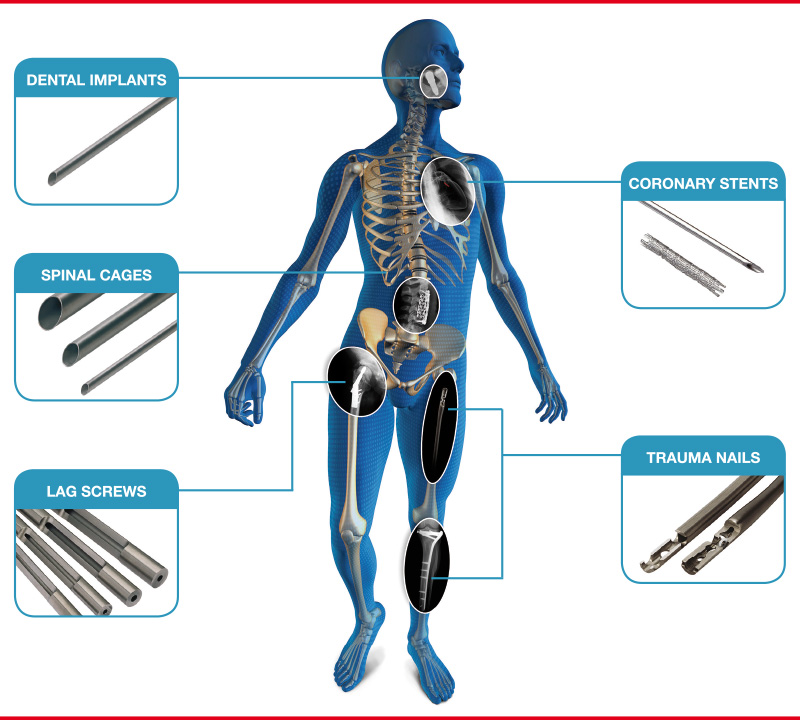

Titanium tubes are utilized in various medical applications, including:
- Orthopedic Implants: Used in joint replacements and bone fixation devices, titanium tubes provide the necessary strength and support for healing bones. Their lightweight nature reduces the overall burden on the body, making them ideal for long-term use. Titanium's ability to integrate with bone tissue, known as osseointegration, further enhances its suitability for orthopedic applications.
- Cardiovascular Devices: Employed in stents and heart valves due to their strength and corrosion resistance, titanium tubes help maintain blood flow and prevent blockages. Their biocompatibility ensures that they can be safely used within the cardiovascular system. The use of titanium in these applications has been shown to improve patient outcomes by reducing the risk of complications associated with traditional materials.
- Surgical Instruments: Used in tools that require high precision and durability, titanium tubes are often found in instruments such as forceps, scalpels, and clamps. Their lightweight and strong nature allows for better maneuverability during surgical procedures. Additionally, titanium's resistance to corrosion and staining makes it an ideal choice for instruments that must be sterilized and reused.
1. Orthopedic Pins and Screws: Titanium tubes are used to create pins and screws that provide stability in bone fractures. Their strength allows for effective load transfer, promoting healing and reducing the risk of re-injury. The use of titanium in these applications has been shown to enhance the healing process and improve patient mobility post-surgery.
2. Stents: Titanium's strength and biocompatibility make it ideal for stents that keep blood vessels open. These devices are crucial in treating cardiovascular diseases, ensuring that blood can flow freely through narrowed arteries. The design of titanium stents allows for flexibility and adaptability within the vascular system, reducing the risk of complications.
3. Surgical Staples: Used in various surgical procedures, titanium staples offer strength and minimal tissue reaction. Their non-reactive nature ensures that they do not cause inflammation or other complications post-surgery. The use of titanium staples has been associated with faster healing times and improved surgical outcomes.
When selecting titanium tubes for medical devices, consider the following factors:
- Diameter and Length: Ensure the tube dimensions meet the specific requirements of the medical device. The diameter must be appropriate for the intended application, whether it is for blood flow or structural support. Accurate measurements are critical to ensure proper fit and function within the device.
- Wall Thickness: The thickness of the tube walls can affect strength and flexibility. Thicker walls may provide additional strength but can also add weight, which may not be desirable in all applications. Manufacturers must balance the need for strength with the overall weight of the device to optimize performance.
- Surface Finish: A smooth surface finish is essential for applications involving fluid flow to minimize turbulence. Surface roughness can impact the performance of devices that rely on precise fluid dynamics, such as catheters and blood vessels. Additionally, a smooth finish can enhance biocompatibility by reducing the likelihood of tissue irritation.
Ensure that the titanium tubes comply with relevant quality standards, such as ASTM and ISO, to guarantee safety and performance. Compliance with these standards ensures that the materials used are tested and verified for their intended applications, reducing the risk of failure in critical medical situations. Manufacturers should also consider certifications from recognized organizations to further validate the quality of their products.
The manufacturing process of titanium tubes can significantly impact their properties. Common techniques include:
- Extrusion: This process involves forcing titanium through a die to create tubes of specific shapes and sizes. Extrusion allows for the production of long lengths of tubing with consistent dimensions, making it ideal for mass production. The extrusion process can also be tailored to create complex shapes that meet specific design requirements.
- Machining: Precision machining is often required to achieve the desired dimensions and surface finish. This process can include cutting, drilling, and grinding to create the final product that meets stringent specifications. Advanced machining techniques, such as CNC machining, can enhance accuracy and repeatability in production.
- Welding: For applications requiring longer lengths, welding techniques may be employed to join multiple sections of titanium tubing. Proper welding techniques are crucial to maintain the integrity and strength of the material. The choice of welding method, such as TIG or laser welding, can significantly affect the final properties of the welded joints.
Titanium tubes offer several advantages in medical applications:
- Biocompatibility: Titanium is well-tolerated by the human body, reducing the risk of rejection. This property is essential for implants that must integrate with biological tissues over time. The ability of titanium to promote osseointegration enhances its effectiveness in orthopedic and dental applications.
- Corrosion Resistance: Titanium's resistance to corrosion ensures longevity in various bodily environments. This is particularly important for devices exposed to bodily fluids, which can be corrosive. The formation of a protective oxide layer on titanium surfaces further enhances its durability and resistance to degradation.
- Strength-to-Weight Ratio: Titanium is lightweight yet strong, making it ideal for implants and devices that require minimal bulk. This characteristic allows for more comfortable and less invasive medical solutions. The use of titanium can lead to smaller, more efficient designs that improve patient comfort and reduce recovery times.
While titanium tubes have many benefits, there are challenges to consider:
- Cost: Titanium is generally more expensive than other metals, which can impact overall project budgets. Manufacturers must weigh the benefits of titanium against its cost to determine if it is the right choice for their applications. The higher initial investment may be justified by the long-term benefits of using titanium in terms of durability and performance.
- Machinability: Titanium can be challenging to machine, requiring specialized tools and techniques. The hardness of titanium can lead to increased wear on cutting tools, necessitating careful planning in the manufacturing process. Manufacturers may need to invest in advanced machining equipment to achieve the desired precision and quality.
- Welding Difficulties: Welding titanium requires careful control of the environment to prevent contamination. The presence of oxygen and nitrogen can lead to embrittlement, compromising the strength of the weld. Manufacturers must implement strict quality control measures during the welding process to ensure the integrity of the final product.
Choosing the right titanium tube for medical devices involves understanding the materials properties, applications, and manufacturing processes. By considering factors such as grade, dimensions, and quality standards, manufacturers can ensure the safety and effectiveness of their medical devices. The right choice of titanium tube can lead to improved patient outcomes, enhanced device performance, and greater overall satisfaction in medical applications.
1. What is the most commonly used titanium grade in medical devices?
- Grade 2 titanium is widely used due to its balance of strength and ductility, making it suitable for various applications.
2. Why is biocompatibility important in titanium tubes?
- Biocompatibility ensures that the material does not cause adverse reactions when implanted in the body, which is crucial for long-term implants.
3. What are the main applications of titanium tubes in medicine?
- Titanium tubes are used in orthopedic implants, cardiovascular devices, and surgical instruments, among other applications.
4. How does the manufacturing process affect titanium tubes?
- The manufacturing process can influence the tube's strength, flexibility, and surface finish, impacting its overall performance in medical applications.
5. What challenges are associated with using titanium tubes?
- Challenges include higher costs, machining difficulties, and welding complexities, which manufacturers must address to ensure successful outcomes.
