Titanium pipes are fundamental components in critical industries such as aerospace, chemical processing, medical devices, and marine applications due to their exceptional strength, corrosion resistance, and lightweight nature. Understanding the difference between seamless and welded titanium pipes is essential to selecting the right pipe for the intended application. This detailed article explores in depth the distinctions between these two types of titanium pipes — from their manufacturing processes, mechanical properties, sizes, and costs to their suitability in various industries. Alongside images and video references showcasing production and applications, this guide empowers engineers, buyers, and designers with crucial knowledge for optimal material selection.
Seamless pipes begin as solid titanium billets or ingots which are heated and then pierced or extruded to form a hollow tube. This tube is then stretched, rolled, and heat-treated to achieve precise dimensions. Because no joints or seams are involved, the pipe has a continuous grain flow and uniform mechanical properties throughout its length.
The manufacturing process is technically demanding, requiring expensive equipment and precise control over temperature and deformation rates. The absence of seams eliminates potential weak points, contributing to high strength and resistance to pressure and corrosion.
Welded pipes start from titanium strips or coils that are rolled into cylindrical shapes. The edges are then joined using welding techniques such as Tungsten Inert Gas (TIG) welding or high-frequency welding. The welded seam is subsequently heat-treated and inspected to ensure quality.
Welded pipes allow a broader range of sizes, including larger diameters and longer lengths, due to the flexibility of rolling and welding. The production process is generally less costly and faster but requires rigorous testing of weld integrity to ensure safety.
Seamless titanium pipes exhibit superior strength and pressure resistance compared to welded pipes. The absence of a weld seam means there are no localized areas prone to defects or stress concentration, which translates into a higher allowable working pressure—often about 20% more than welded pipes.
Welded pipes, although strong, have a weld seam that may become a failure point under extreme pressure or corrosive environments if not manufactured correctly. However, modern welding technologies have significantly improved seam quality, narrowing the performance gap.
Without seams, seamless pipes offer uniform corrosion resistance across the entire surface. Weld seams, despite protective treatments, remain potential sites for accelerated corrosion especially in aggressive media or cyclic stress conditions.
Seamless titanium pipes are typically available in smaller to moderate diameters, usually ranging up to 114 mm OD (outer diameter). Manufacturing limitations and cost escalate as size increases. They are particularly suited for applications requiring precise tolerances and high performance at smaller scales.
Welded titanium pipes are exceptionally versatile in dimensions, available in large diameters often exceeding 600 mm and unlimited lengths. This makes them ideal for structural piping, large equipment connections, and extensive plumbing systems.
Seamless titanium pipes are more expensive due to the complex manufacturing process, higher raw material requirements, and slower production rates. However, their high performance often justifies the cost in demanding applications like aerospace fuel lines or medical implants.
Welded pipes offer significant cost savings because of simpler manufacturing, material efficiency (using coils), and scalability to large sizes. They are preferred in applications where budget constraints exist and the operating conditions are less severe.
Seamless pipes dominate in aerospace hydraulic lines, fuel delivery systems, and high-pressure instrumentation tubing due to their superior strength and uniformity.
Welded pipes are heavily used in chemical processing plants, power stations, and marine infrastructure for transporting fluids in large diameters where cost and size are prioritized.
Seamless titanium tubes are preferred in medical implants, surgical tools, and diagnostic equipment for their strength, purity, and surface uniformity.
Welded pipes require non-destructive testing (NDT) techniques such as X-ray or ultrasonic inspection of seams to detect potential flaws. Seamless pipes, lacking seams, generally do not require weld inspections but undergo stringent metallurgical and mechanical property testing.
Both types of pipes are subjected to dimensional checks, pressure testing, corrosion resistance validation, and tensile tests to ensure compliance with ASTM standards (such as ASTM B338 for seamless and ASTM B862 for welded titanium pipes).

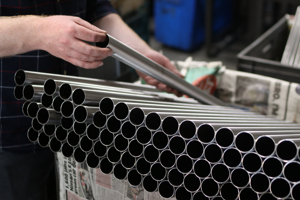

Images comparing seamless and welded titanium pipes highlight smoothness, uniform wall thickness of seamless pipes, and visible weld seams on welded pipes. Production videos illustrate billet piercing and rolling for seamless pipes and TIG welding processes for welded pipes, offering a clear understanding of their fabrication complexities and usage contexts.
1. Why are seamless titanium pipes stronger than welded pipes?
Because seamless pipes have no weld seams where cracks or weaknesses can develop, they exhibit better uniform strength and pressure resistance.
2. Which type of titanium pipe is more cost-effective?
Welded titanium pipes are generally cheaper to manufacture and suited for applications where cost is a priority over extreme durability.
3. Are welded titanium pipes safe for high-pressure applications?
Yes, with modern advanced welding and rigorous testing, welded pipes are safe for many high-pressure uses, though typically rated lower than seamless pipes.
4. Can seamless pipes be produced in large diameters?
It's challenging and costly to produce seamless pipes at very large diameters, which is where welded pipes offer an advantage.
5. How is the quality of welded seams ensured?
Non-destructive testing methods like ultrasonic and X-ray inspection check weld integrity to ensure safe serviceability.
Seamless and welded titanium pipes each have distinct advantages and ideal use cases. Seamless titanium pipes stand out for their superior mechanical strength, uniform corrosion resistance, and critical application suitability—particularly in aerospace, medical, and high-pressure systems. Welded titanium pipes provide an economical, versatile solution capable of large diameters and lengths, often favored in chemical and marine infrastructure. Understanding these differences, supported by manufacturing insights and performance data, equips engineers and purchasers to select the titanium pipe type that best fits their technical and economic requirements, ensuring safety and efficiency in demanding environments.
