Titanium is a remarkable metal known for its strength, lightweight, and corrosion resistance. The manufacturing process of titanium sheets is intricate and involves several stages, from raw material extraction to the final product. This article will delve into the various steps involved in the titanium sheet manufacturing process, supported by diagrams and images to enhance understanding.
Titanium is the ninth most abundant element in the Earth's crust and is primarily extracted from minerals such as rutile and ilmenite. Its unique properties make it suitable for various applications, particularly in aerospace, medical devices, and automotive industries. Titanium's high strength-to-weight ratio, excellent corrosion resistance, and biocompatibility have made it a preferred choice in demanding environments. The metal is also non-toxic and has a high melting point, which adds to its versatility in various applications.

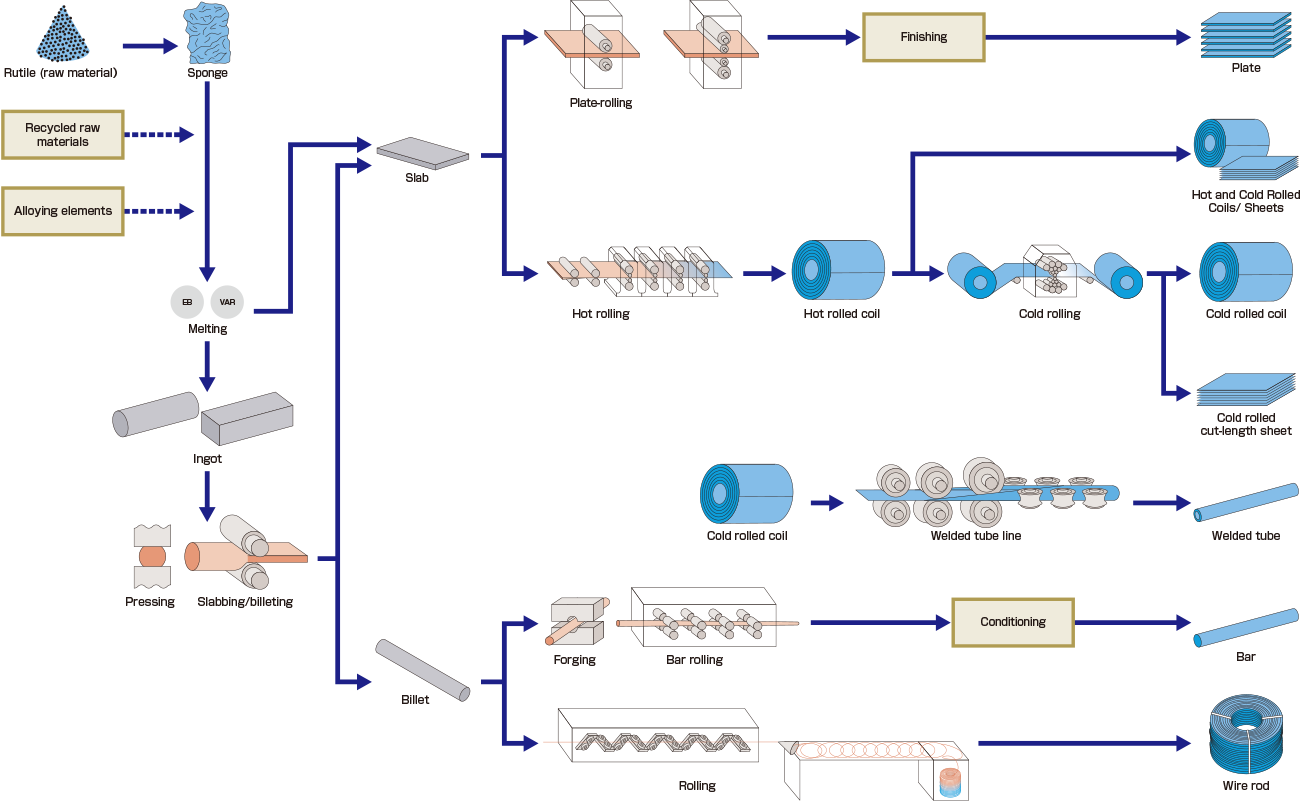

The manufacturing process of titanium sheets can be broken down into several key stages:
The first step in the titanium sheet manufacturing process is the preparation of raw materials. High-quality titanium ores, primarily rutile and ilmenite, are sourced and processed to extract titanium dioxide (TiO2). This is achieved through a series of chemical reactions, including chlorination and reduction. The quality of the raw materials is crucial, as impurities can significantly affect the properties of the final product. The extraction process involves crushing the ore and treating it with chemicals to separate titanium from other elements. This meticulous preparation ensures that the titanium produced meets the stringent specifications required for various applications.

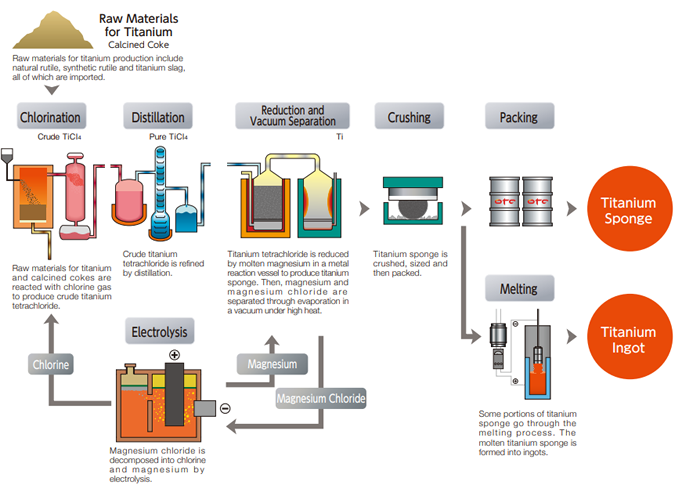

Once the titanium dioxide is obtained, it undergoes the Kroll process, where it is reduced to produce titanium sponge. This involves reacting titanium tetrachloride (TiCl4) with magnesium in a high-temperature environment. The result is a porous form of titanium known as titanium sponge. This sponge is not only lightweight but also has a high surface area, making it ideal for further processing. The Kroll process is critical as it determines the purity and quality of the titanium produced. The titanium sponge can then be crushed and processed into various forms, including ingots and slabs, which are essential for the subsequent manufacturing stages.
The titanium sponge is then melted in a vacuum or inert atmosphere to prevent contamination. This melting process can be performed using various methods, including Vacuum Arc Remelting (VAR) and Electron Beam Melting (EBM). VAR provides high purity and excellent mechanical properties, while EBM is particularly useful for producing high-performance titanium alloys. After melting, alloying elements may be added to enhance specific properties, such as strength and corrosion resistance. The ability to create titanium alloys allows manufacturers to tailor the material properties to meet the specific requirements of different applications, making titanium a highly versatile material.
The molten titanium is cast into ingots or slabs, which are then cooled and solidified. This step is crucial as it determines the microstructure and mechanical properties of the final product. The casting process can involve various techniques, including sand casting and investment casting, depending on the desired shape and size of the final product. Proper cooling rates and conditions are essential to avoid defects such as cracking or porosity in the cast titanium. The quality of the cast product directly influences the performance of the titanium sheets produced from it.
Once the ingots are produced, they are subjected to rolling processes to achieve the desired thickness and shape. This can be done through hot rolling, which is performed at elevated temperatures, or cold rolling, which is done at room temperature. Hot rolling helps in achieving the desired thickness while improving ductility, making it easier to shape the material. Cold rolling, on the other hand, is used to achieve tighter tolerances and improved surface finish. The rolling process is critical in determining the final properties of the titanium sheets, including their strength, ductility, and surface quality.
After rolling, the titanium sheets undergo heat treatment to relieve internal stresses and enhance mechanical properties. This may include processes such as annealing, which improves ductility and toughness. Heat treatment is essential for optimizing the microstructure of the titanium sheets, ensuring that they meet the required specifications for various applications. The specific heat treatment process can vary depending on the alloy composition and desired properties, making it a crucial step in the manufacturing process.
The final step in the manufacturing process is surface treatment. This can involve pickling, passivation, or coating to enhance corrosion resistance and surface quality. Proper surface treatment is essential for applications in harsh environments, as it helps to protect the titanium sheets from corrosion and wear. The surface finish can also affect the adhesion of coatings and paints, making it an important consideration in the manufacturing process. Various surface treatment techniques can be employed, depending on the intended application of the titanium sheets.
Titanium sheets are widely used across various industries due to their unique properties. Some common applications include:
- Aerospace: Used in aircraft components due to their lightweight and strength. Titanium's ability to withstand extreme temperatures and corrosive environments makes it ideal for critical aerospace applications, including engine components and airframes.
- Medical Devices: Biocompatible titanium is used in implants and surgical instruments. Its non-toxic nature and resistance to corrosion make it suitable for long-term implantation in the human body, ensuring patient safety and comfort.
- Automotive: Employed in high-performance vehicles for weight reduction and strength. The use of titanium in automotive applications helps improve fuel efficiency and overall performance, making it a popular choice for sports cars and racing vehicles.
While titanium offers numerous advantages, its manufacturing process presents several challenges:
- High Cost: The complex production process makes titanium expensive compared to other metals. The costs associated with raw material extraction, processing, and fabrication can limit its use in certain applications.
- Fabrication Difficulties: Titanium's unique properties require specialized equipment and techniques for effective fabrication. The metal's low thermal conductivity and high strength can complicate machining and forming processes, necessitating careful planning and execution.
- Deformation: Titanium is prone to deformation during processing, necessitating careful handling and control. The risk of warping or other defects during fabrication can impact the quality of the final product, requiring additional quality control measures.
The titanium industry is continuously evolving, with advancements aimed at improving efficiency and reducing costs. Some trends include:
- Additive Manufacturing: 3D printing technologies are being explored for producing titanium components, allowing for complex geometries and reduced waste. This innovative approach can lead to significant cost savings and design flexibility, making titanium more accessible for various applications.
- Recycling: Efforts are being made to develop efficient recycling processes for titanium scrap, enhancing sustainability. The ability to recycle titanium not only reduces waste but also lowers the environmental impact of titanium production, making it a more sustainable choice for manufacturers.
The manufacturing process of titanium sheets is a complex and multi-faceted operation that requires precision and expertise. From raw material preparation to the final product, each step plays a crucial role in determining the quality and performance of titanium sheets. As technology advances, the titanium industry is poised for growth, with new methods and applications emerging. The ongoing research and development in titanium manufacturing processes will likely lead to more efficient production techniques, making titanium an even more valuable material in the future.
1. What is the Kroll process?
- The Kroll process is the primary method for producing titanium, involving the reduction of titanium tetrachloride with magnesium. This process is essential for obtaining high-purity titanium sponge, which serves as the starting material for further processing.
2. Why is titanium used in aerospace applications?
- Titanium's high strength-to-weight ratio and corrosion resistance make it ideal for aerospace components. Its ability to withstand extreme temperatures and harsh environments is crucial for ensuring the safety and performance of aircraft.
3. What are the benefits of titanium sheets in medical devices?
- Titanium is biocompatible, meaning it can be safely used in the human body without adverse reactions. Its corrosion resistance and strength make it suitable for long-term implants and surgical instruments.
4. How does heat treatment affect titanium sheets?
- Heat treatment improves the mechanical properties of titanium sheets, enhancing their ductility and toughness. This process is critical for optimizing the microstructure of the material, ensuring it meets the required specifications for various applications.
5. What challenges are faced in titanium sheet manufacturing?
- Challenges include high production costs, fabrication difficulties, and the risk of deformation during processing. These factors can impact the overall quality and performance of the final product, necessitating careful planning and execution.
