Titanium threaded bars are essential components in various industries due to their unique properties, including high strength, low weight, and excellent corrosion resistance. This article explores the common sizes and specifications of titanium threaded bars, their applications, and the factors influencing their selection. By understanding these aspects, engineers and procurement specialists can make informed decisions when sourcing these critical components.
Titanium is a metal known for its remarkable strength-to-weight ratio and resistance to corrosion, making it an ideal choice for applications in aerospace, marine, medical, and chemical industries. Threaded bars, also known as threaded rods, are long, cylindrical rods with helical grooves (threads) that allow them to be fastened securely to other components. The versatility of titanium threaded bars makes them suitable for a wide range of applications, from structural support to fastening delicate medical devices.
Before delving into sizes and specifications, it is essential to understand the properties that make titanium a preferred material for threaded bars:
- High Strength: Titanium has a tensile strength comparable to steel but is significantly lighter. This property allows for the design of lighter structures without compromising strength, which is particularly beneficial in aerospace applications where weight reduction is critical.
- Corrosion Resistance: It is highly resistant to corrosion, especially in harsh environments, making it suitable for marine and chemical applications. Titanium's ability to withstand oxidation and other corrosive processes extends the lifespan of components, reducing maintenance costs and downtime.
- Biocompatibility: Titanium is non-toxic and biocompatible, making it ideal for medical implants and devices. Its compatibility with human tissue ensures that it can be safely used in surgical applications, such as orthopedic implants and dental fixtures.
- Temperature Resistance: It maintains its strength and stability at high temperatures. This characteristic is crucial in applications such as jet engines and industrial furnaces, where materials are subjected to extreme heat.

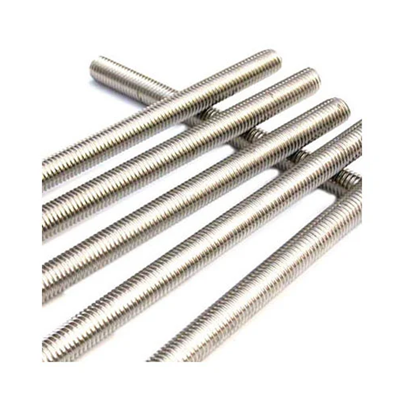

Titanium threaded bars come in various sizes, typically categorized by their diameter and length. The most common sizes include:
- M4: 4 mm diameter
- M6: 6 mm diameter
- M8: 8 mm diameter
- M10: 10 mm diameter
- M12: 12 mm diameter
- M14: 14 mm diameter
- M16: 16 mm diameter
- M20: 20 mm diameter
- M24: 24 mm diameter
- M30: 30 mm diameter
These metric sizes are widely used in Europe and Asia, where the ISO metric system is the standard. The availability of these sizes allows for compatibility with various components and systems designed to metric specifications.
- 1/4 inch: Approximately 6.35 mm
- 3/8 inch: Approximately 9.53 mm
- 1/2 inch: Approximately 12.7 mm
- 5/8 inch: Approximately 15.88 mm
- 3/4 inch: Approximately 19.05 mm
Imperial sizes are commonly used in the United States and other countries that follow the imperial measurement system. The choice between metric and imperial sizes often depends on the regional standards and the specific requirements of the project.
Titanium threaded bars are available in various lengths, typically ranging from 50 mm to 3000 mm (approximately 2 inches to 118 inches). Custom lengths can also be manufactured based on specific requirements. This flexibility in length allows engineers to select the appropriate size for their applications, ensuring a perfect fit and optimal performance.

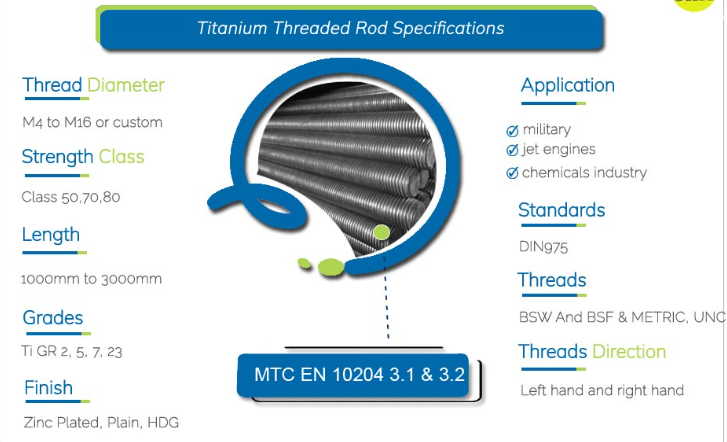

The specifications of titanium threaded bars are crucial for ensuring they meet the demands of their intended applications. Key specifications include:
- Metric Threads: Commonly used in Europe and Asia, these follow the ISO metric thread standards. Metric threads are characterized by their pitch and diameter, which are standardized to ensure compatibility with other components.
- Unified National Threads (UNC/UNF): Standard in the United States, these threads are used in various applications. UNC (Unified National Coarse) and UNF (Unified National Fine) threads differ in their pitch, with coarse threads providing better grip in softer materials and fine threads offering greater tensile strength.
Titanium threaded bars are available in different grades, each with specific properties:
- Grade 2: The most commonly used titanium grade, known for its excellent corrosion resistance and weldability. Grade 2 titanium is often used in applications where moderate strength and good ductility are required.
- Grade 5 (Ti-6Al-4V): An alloy of titanium with aluminum and vanadium, offering higher strength and heat resistance. This grade is widely used in aerospace and medical applications due to its superior mechanical properties.
- Grade 7: Known for its superior corrosion resistance, particularly in acidic environments. Grade 7 titanium is often used in chemical processing and marine applications where exposure to harsh chemicals is a concern.
The mechanical properties of titanium threaded bars vary by grade but generally include:
- Tensile Strength: Ranges from 300 MPa (Grade 2) to over 900 MPa (Grade 5). This high tensile strength allows titanium threaded bars to withstand significant loads without deformation.
- Yield Strength: Typically around 240 MPa for Grade 2 and up to 800 MPa for Grade 5. Yield strength is a critical factor in determining how much load a threaded bar can handle before it begins to deform permanently.
- Elongation: Varies from 10% to 20%, indicating the material's ductility. A higher elongation percentage means the material can stretch more before breaking, which is essential in applications where flexibility is required.
Titanium threaded bars are utilized in various applications due to their unique properties:
In aerospace, titanium threaded bars are used in aircraft structures, engine components, and fasteners due to their lightweight and strength. The aerospace industry demands materials that can withstand extreme conditions, including high temperatures and pressures, making titanium an ideal choice for critical components.
Their corrosion resistance makes titanium threaded bars ideal for marine environments, including boat fittings and underwater structures. In marine applications, the ability to resist saltwater corrosion is crucial for ensuring the longevity and reliability of components.
In the medical field, titanium threaded bars are used in implants and surgical instruments due to their biocompatibility and strength. The use of titanium in medical devices has revolutionized the field, allowing for safer and more effective treatments.
Titanium's resistance to corrosive chemicals makes it suitable for use in chemical processing equipment and piping systems. In industries where exposure to harsh chemicals is common, titanium threaded bars provide a reliable solution that minimizes the risk of failure.
When selecting titanium threaded bars, several factors should be considered:
The environment in which the threaded bars will be used plays a significant role in material selection. For example, marine applications require high corrosion resistance, while aerospace applications may prioritize weight and strength. Understanding the specific environmental conditions helps ensure that the selected material will perform optimally.
Understanding the load requirements is crucial for selecting the appropriate size and grade of titanium threaded bars to ensure they can withstand the intended stresses. Engineers must consider both static and dynamic loads, as well as any potential shock or vibration that may occur during operation.
While titanium offers many advantages, it is generally more expensive than other materials. Budget constraints may influence the choice of material and specifications. However, the long-term benefits of using titanium, such as reduced maintenance and increased lifespan, often justify the initial investment.
The availability of specific sizes and grades can also impact the selection process. Some sizes may require custom manufacturing, which can lead to longer lead times. It is essential to work with reliable suppliers who can provide the necessary materials within the required timeframe.
Titanium threaded bars are invaluable components in various industries due to their unique properties and versatility. Understanding the common sizes and specifications is essential for selecting the right threaded bars for specific applications. With their high strength, low weight, and excellent corrosion resistance, titanium threaded bars continue to be a preferred choice for demanding environments. As industries evolve and new applications emerge, the demand for titanium threaded bars is likely to grow, further solidifying their role in modern engineering.
The most common grades are Grade 2, which is known for its corrosion resistance and weldability, and Grade 5 (Ti-6Al-4V), which offers higher strength and heat resistance.
Consider the load requirements, environmental conditions, and any specific industry standards that may apply to your application.
Yes, titanium threaded bars can be manufactured to custom sizes and lengths based on specific requirements.
Titanium offers a higher strength-to-weight ratio, better corrosion resistance, and is non-toxic, making it suitable for medical applications.
Yes, titanium is generally more expensive than materials like steel, but its unique properties often justify the cost in demanding applications.
