Titanium is a remarkable material favored across various industries for its excellent combination of strength, corrosion resistance, and lightweight nature. Among the most commonly used forms are Grade 2 and Grade 5 titanium round bars, each possessing distinct properties and advantages. Understanding these differences is crucial for engineers and designers to select the most appropriate material for their specific applications. This detailed guide expands on the key characteristics of Grade 2 and Grade 5 titanium round bars, comparing their composition, mechanical properties, corrosion behavior, fabrication requirements, costs, and ideal industry uses.


Chemical Composition and Alloying Elements

Grade 2 Titanium: Commercially Pure Excellence

Grade 2 titanium is categorized as commercially pure titanium, containing approximately 99% pure titanium with only trace elements such as oxygen, carbon, nitrogen, and iron. This minimal alloying composition results in extraordinary corrosion resistance and excellent formability. Grade 2's purity enhances its ability to resist oxidative degradation, making it ideal for environments where exposure to chemicals or saline solutions is common.

Grade 5 Titanium: The Alpha-Beta Alloy Workhorse

Grade 5 titanium, also known as Ti-6Al-4V, is an alloy that includes roughly 6% aluminum and 4% vanadium along with titanium. Aluminum adds strength and corrosion resistance at elevated temperatures while vanadium improves toughness and fatigue strength. This alloy formulation creates a materially stronger and more versatile component capable of sustaining heavier mechanical loads and withstanding more severe environmental challenges.

The alloying process requires advanced production techniques, but results in titanium bars with significantly enhanced strength and structural durability.


Mechanical Properties: Strength and Ductility

Superior Strength of Grade 5

Grade 5 titanium round bars exhibit tensile strengths ranging from about 900 MPa to over 1100 MPa, nearly three to four times higher than the approximate 350 MPa tensile strength of Grade 2. This scale of strength makes Grade 5 ideal for critical structural applications demanding high load-bearing performance, toughness, and fatigue life, such as aerospace parts and medical implants.

Ductility Differences Favor Grade 2

While Grade 5 emphasizes strength, Grade 2 titanium offers substantially greater ductility with elongation percentages between 20% and 30%, making it easier to form and shape without brittleness. This high ductility allows Grade 2 to accommodate complex manufacturing processes such as bending, drawing, and extruding, which are essential in pipework, chemical processing vessels, and marine hardware.

In comparison, Grade 5 has elongation in the range of 10%-15%, making it less forgiving during fabrication but advantageous where structural integrity is paramount.

Hardness and Wear Resistance

Grade 5 titanium achieves higher hardness values compared to Grade 2, enhancing wear and abrasion resistance. Components subject to friction or mechanical wear—such as aerospace moving parts, automotive engine components, or valves—benefit from Grade 5's superior hardness.


Corrosion Resistance: Grade 2's Advantage

Both titanium grades provide excellent corrosion resistance, but Grade 2 generally outperforms Grade 5 in highly oxidizing or acidic environments due to the lower alloy content and stable passive oxide film. Grade 2 is widely used in highly aggressive marine, chemical, and biomedical environments where the utmost resistance to pitting, crevice corrosion, and general chemical attack is necessary.

Grade 5, while still resistant to many corrosive media, can be more susceptible to galvanic corrosion in conditions with elevated chloride concentrations or acid exposure compared to Grade 2.


Fabrication and Processing Considerations

Machining and Forming Ease of Grade 2

Grade 2 titanium's softness and ductility translate to smoother machining, less tool wear, and more economical fabrication. It allows complex shapes and thin-walled products with minimal cracking or material loss.

Fabrication Challenges with Grade 5

Grade 5's strength and hardness require advanced tooling and machining practices with slower cutting speeds and robust cooling to avoid surface damage or premature tool wear. Welding Grade 5 titanium demands controlled atmospheres and precise heat control to prevent embrittlement and preserve mechanical properties, making it a more specialized and costly process.


Cost and Market Considerations

Grade 2 titanium round bars are often less expensive in raw material and manufacturing costs, due chiefly to simpler chemical composition and easier processing. Grade 5 titanium's enhanced performance comes with higher material and fabrication costs, but these are justified in demanding applications that benefit from increased strength and durability.

Both grades are commercially available worldwide, with suppliers providing a broad range of sizes and certifications to meet modern industrial demands.


Industry Applications of Grade 2 and Grade 5 Titanium Round Bars

Grade 2 Titanium Applications

Grade 2 titanium is chosen where corrosion resistance and formability outweigh the need for ultimate strength. Common applications include:

- Chemical processing equipment like heat exchangers and piping

- Marine hardware exposed to harsh seawater environments

- Architectural panels and roofing requiring durability and corrosion resistance

- Surgical tools and non-load-bearing biomedical implants needing biocompatibility

Grade 5 Titanium Applications

Grade 5 is the alloy of choice for applications demanding superior strength and high-performance characteristics such as:

- Aerospace structural components including engine parts, fasteners, and landing gear

- Medical implants requiring load-bearing strength such as hip and knee joints

- Automotive high-stress parts including suspension, connecting rods, and exhaust systems

- Specialized sporting goods like high-performance bicycle frames and golf clubs

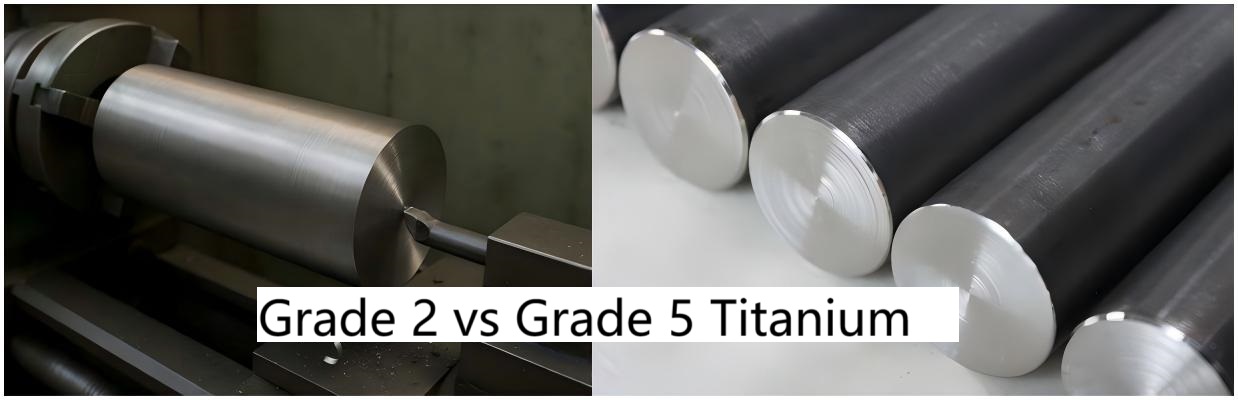

Grade-2-vs-Grade-5-Titanium


Frequently Asked Questions

1. What is the key difference in chemical composition between Grade 2 and Grade 5 titanium?

Grade 2 is commercially pure titanium with minimal alloying, while Grade 5 contains aluminum and vanadium alloys.

2. Which titanium grade has higher tensile strength?

Grade 5 titanium is significantly stronger than Grade 2 titanium.

3. Is Grade 2 titanium easier to fabricate than Grade 5?

Yes, Grade 2's higher ductility makes it easier to machine and form.

4. Which titanium grade provides better corrosion resistance?

Grade 2 titanium offers superior corrosion resistance in many aggressive environments.

5. How do costs compare between Grade 2 and Grade 5 titanium bars?

Grade 2 is generally less expensive due to simpler composition and manufacturing processes.
